1N935BUR-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

📥 Download Datasheet

Datasheet Details

Part number 1N935BUR-1
Manufacturer Compensated Deuices Incorporated
File Size 51.09 KB
Description TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
Datasheet download datasheet 1N935BUR-1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N935BUR-1 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES Microsemi Corporation
1N935B 9.0 Volt Temperature Compensated Zener Reference Diodes Microsemi
1N935B TEMPERATURE COMPENSATED ZENER REFERENCE DIODES Digitron Semiconductors
1N935B Silicon Zener Diode Mootorola
1N935B-1 Temperature Compensated Zener Reference Diodes Microsemi

Other Datasheets by Compensated Deuices Incorporated

Part Number Description
1N935B 9.0 VOLT NOMINAL ZENER VOLTAGE
1N935 9.0 VOLT NOMINAL ZENER VOLTAGE
1N935A 9.0 VOLT NOMINAL ZENER VOLTAGE
1N936 9.0 VOLT NOMINAL ZENER VOLTAGE
1N936A 9.0 VOLT NOMINAL ZENER VOLTAGE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

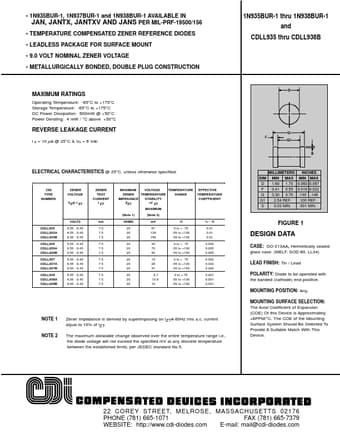

• 1N935BUR-1, 1N937BUR-1 and 1N938BUR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/156 • TEMPERATURE COMPENSATED ZENER REFERENCE DIODES • LEADLESS PACKAGE FOR SURFACE MOUNT • 9.0 VOLT NOMINAL ZENER VOLTAGE • METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION 1N935BUR-1 thru 1N938BUR-1 and CDLL935 thru CDLL938B MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C REVERSE LEAKAGE CURRENT l R = 10 µA @ 25°C & VR = 6 Vdc ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
