SF58-G, SF51-G - Super Fast Rectifiers

Name: SF58-G
SKU: SF58-G-1210177

Comchip

The SF58-G by Comchip is a Super Fast Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SF58-G, SF51-G
Manufacturer	Comchip
File Size	76.54 KB
Description	Super Fast Rectifiers
Datasheet	SF51-G-Comchip.pdf
Note	This datasheet PDF includes multiple part numbers: SF58-G, SF51-G. Please refer to the document for exact specifications by model.

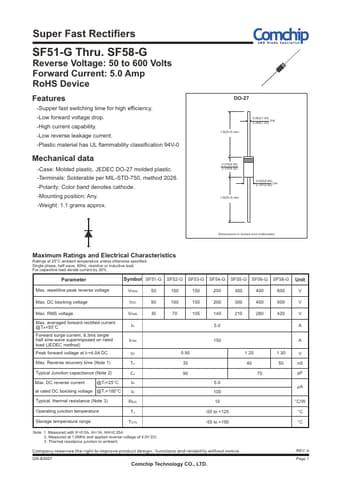

Additional preview pages of the SF58-G datasheet.

-Supper fast switching time for high efficiency. -Low forward voltage drop. -High current capability. -Low reverse leakage current. -Plastic material has UL flammability classification 94V-0 Mechanical data -Case: Molded plastic, JEDEC DO-27 molded plastic. -Terminals: Solderable per MIL-STD-750, method 2026. -Polarity: Color band denotes cathode. -Mounting position: Any. -Weight: 1.1 grams approx. DO-27 1.0(25.4) min. 0.052(1.30) DIA. 0.048(1.20) 0.375(9.50) 0.335(8.50) 1.0(25.4) min. 0.22.
