SB1100-G, SB120-G Leaded Schottky Barrier Rectifiers

SB1100-G Description

Leaded Schottky Barrier Rectifiers SB120-G Thru.SB1100-G Voltage: 20 to 100 V Current: 1.0 A RoHS Device .

SB1100-G Applications

* -Lead-free part, meet RoHS requirements. Comchip SMD Diode Specialist DO-41 .107(2.7) .080(2.0) 1.0(25.4) Min. .205(5.2) .160(4.1) Mechanical data -Epoxy: UL94-V0 rated flame retardant -Case: Molded plastic body DO-41 -Terminals: Solderable per MIL-STD-750 Method 2026 -Polarity: Color band deno

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB1100-G, SB120-G. Please refer to the document for exact specifications by model.

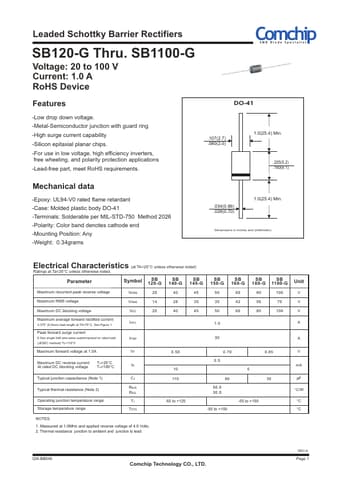

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB1100-G, SB120-G
Manufacturer
Comchip
File Size
46.47 KB
Datasheet
SB120-G-Comchip.pdf
Description
Leaded Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SB1100-G, SB120-G.
Please refer to the document for exact specifications by model.
