P6KE27A-G, P6KE6.8-G - 600W Transient Voltage Suppressor

Comchip

Datasheet Details

Part number	P6KE27A-G, P6KE6.8-G
Manufacturer	Comchip
File Size	217.84 KB
Description	600W Transient Voltage Suppressor

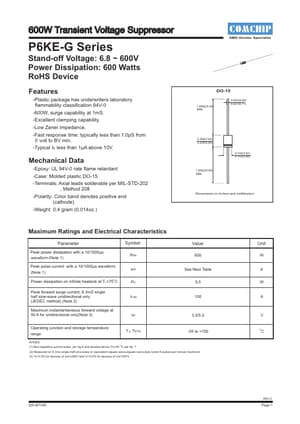

Datasheet	P6KE6.8-G-Comchip.pdf
Note	This datasheet PDF includes multiple part numbers: P6KE27A-G, P6KE6.8-G. Please refer to the document for exact specifications by model.

-Plastic package has underwriters laboratory flammability classification 94V-0 -600W, surge capability at 1mS. -Excellent clamping capability. -Low Zener impedance. -Fast response time: typically less than 1.0pS from 0 volt to BV min. -Typical IR less than 1μA above 10V. 1.000(25.40) MIN. DO-15 0.033(0.84) 0.027(0.71) 0.300(7.63) 0.230(5.85) Mechanical Data -Epoxy: UL 94V-0 rate flame retardant -Case: Molded plastic DO-15 -Terminals: Axial leads solderable per MIL-STD-202 , Method 208 -Polari.
