P4KE220CA-G - 400W Transient Voltage Suppressor

Download the P4KE220CA-G datasheet PDF. This datasheet also covers the P4KE6.8-G variant, as both devices belong to the same 400w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • -Glass passivated chip -Low leakage -Uni and Bidirection unit -Excellent clamping capability -The plastic material has UL recognition 94V-0 -Fast response time: typically less than 1.0pS from 0 volts to BV min Mechanical Data -Case: Molded plastic DO-41 -Polarity: By cathode band denotes unidirectional device none cathode band denoted bi-directional device -Weight: 0.34 grams DO-41 1.000(25.40) MIN. 0.033(0.84) 0.028(0.71) DIA. 0.205(5.21) 0.165(4.19) 1.000(25.40) MIN. 0.117(2.97) 0.090(2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P4KE6.8-G-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P4KE220CA-G
Manufacturer Comchip
File Size 117.33 KB
Description 400W Transient Voltage Suppressor
Datasheet download datasheet P4KE220CA-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P4KE220CA-LF 400W TRANSIENT VOLTAGE SUPPRESSOR Sirectifier
P4KE220CA TVS MCC
P4KE220CA Transient Voltage Suppressors HITANO
P4KE220CA Axial Lead Transient Voltage Suppressors SOCAY
P4KE220CA Transient Voltage Suppressor Diodes Diotec

Other Datasheets by Comchip

Part Number Description
P4KE220C-G 400W Transient Voltage Suppressor
P4KE220-G 400W Transient Voltage Suppressor
P4KE220A-G 400W Transient Voltage Suppressor
P4KE22-G 400W Transient Voltage Suppressor
P4KE22A-G 400W Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

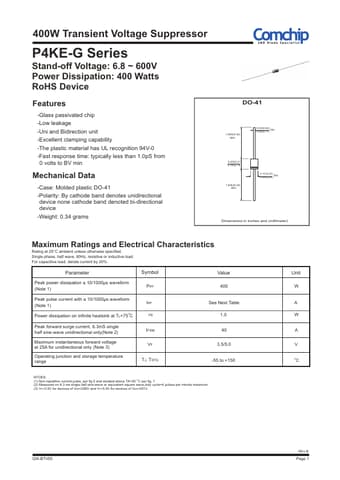

400W Transient Voltage Suppressor P4KE-G Series Stand-off Voltage: 6.8 ~ 600V Power Dissipation: 400 Watts RoHS Device Features -Glass passivated chip -Low leakage -Uni and Bidirection unit -Excellent clamping capability -The plastic material has UL recognition 94V-0 -Fast response time: typically less than 1.0pS from 0 volts to BV min Mechanical Data -Case: Molded plastic DO-41 -Polarity: By cathode band denotes unidirectional device none cathode band denoted bi-directional device -Weight: 0.34 grams DO-41 1.000(25.40) MIN. 0.033(0.84) 0.028(0.71) DIA. 0.205(5.21) 0.165(4.19) 1.000(25.40) MIN. 0.117(2.97) 0.090(2.29) DIA. Dimensions in inches and (millimeter) Maximum Ratings and Electrical Characteristics Rating at 25°C ambient unless otherwise specified.
