MB6S-G - Glass Passivated Bridge Rectifiers

Name: MB6S-G
SKU: MB6S-G-1184119

Comchip

The MB6S-G by Comchip is a Glass Passivated Bridge Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	MB6S-G
Manufacturer	Comchip
File Size	83.07 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	MB6S-G-Comchip.pdf

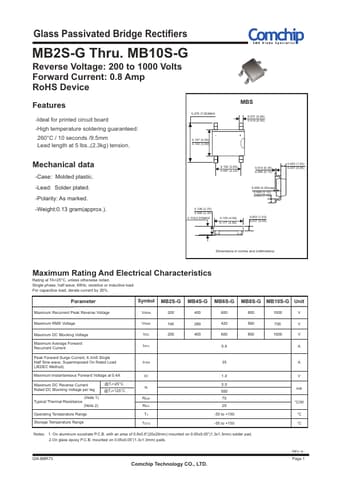

Additional preview pages of the MB6S-G datasheet.

-Ideal for printed circuit board -High temperature soldering guaranteed: 260°C / 10 seconds /9.5mm Lead length at 5 lbs. ,(2.3kg) tension. 0.276 (7.00)MAX 0.157 (4.00) 0.142 (3.60) - MBS 0.031 (0.84) 0.019 (0.50) + Mechanical data -Case: Molded plastic. -Lead: Solder plated. -Polarity: As marked. -Weight:0.13 gram(approx. ). 0.102 (2.60) 0.087 (2.20) 0.014 (0.35) 0.006 (0.15) 0.053 (1.53) 0.037 (0.95) 0.106 (2.70) 0.090 (2.30) 0.118(3.00)MAX 0.193 (4.90) 0.177 (4.50) 0.008 (0.20)max 0.0.
