KBP202G-G, KBP2005G-G Glass Passivated Bridge Rectifiers

KBP202G-G Description

Glass Passivated Bridge Rectifiers KBP2005G-G Thru.KBP210G-G Reverse Voltage: 50 to 1000V Forward Current: 2.0 Amp RoHS Device .

KBP202G-G Features

* -Surge overload rating -60 amperes peak. -Ideal for printed circuit board. -UL recognized file # E349301 R 0.118(3.0)
* 45° KBP 0.600(15.24) 0.560(14.22) 0.500(12.70) 0.460(11.68) 0.460(11.68) 0.420(10.67) +─ Mechanical Data -Case: Molded plastic body over passivated junctions. -Epoxy: UL 94V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBP202G-G, KBP2005G-G. Please refer to the document for exact specifications by model.

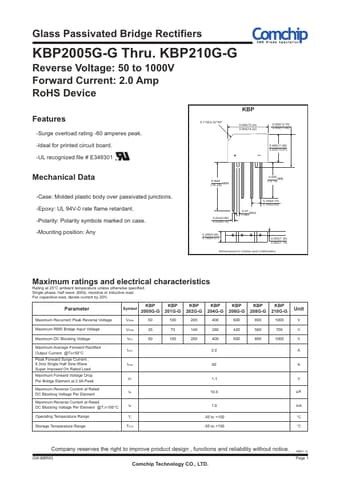

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KBP202G-G, KBP2005G-G
Manufacturer
Comchip
File Size
62.29 KB
Datasheet
KBP2005G-G-Comchip.pdf
Description
Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: KBP202G-G, KBP2005G-G.
Please refer to the document for exact specifications by model.
