HER305-G - Efficient Fast Recovery Rectifiers

Download the HER305-G datasheet PDF. This datasheet also covers the HER301-G variant, as both devices belong to the same efficient fast recovery rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • -Glass passivated chip. -Low forward voltage. -High reliability. -High surge current capability. -High speed switching. Mechanical data -Case: JEDEC DO-27 molded plastic. -Epoxy: UL 94V-0 rate flame retardant. -Polarity: Color band denotes cathode end. -Lead: Solderable per MIL-STD-202, method 208 guaranteed. -Mounting position: Any -Weight: 0.844 grams.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HER301-G-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HER305-G
Manufacturer Comchip
File Size 45.79 KB
Description Efficient Fast Recovery Rectifiers
Datasheet download datasheet HER305-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HER305 3A High Efficiency Diodes Leshan Radio Company
HER305 HIGH EFFICIENCY RECTIFIER Rectron Semiconductor
HER305 3.0A HIGH EFFICIENCY RECTIFIER Diodes Incorporated
HER305 3.0 Amp High Efficient Rectifiers Micro Commercial Components
HER305 HIGH EFFICIENCY RECTIFIER GOOD-ARK Electronics

Other Datasheets by Comchip

Part Number Description
HER301-G Efficient Fast Recovery Rectifiers
HER302-G Efficient Fast Recovery Rectifiers
HER303-G Efficient Fast Recovery Rectifiers
HER304-G Efficient Fast Recovery Rectifiers
HER306-G Efficient Fast Recovery Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

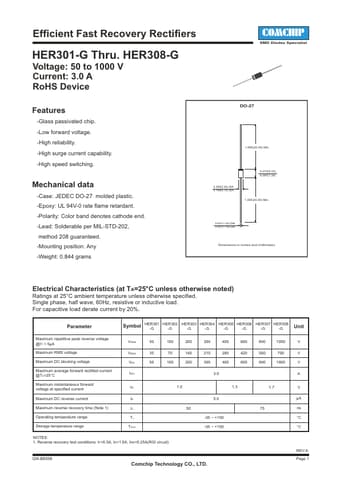

Efficient Fast Recovery Rectifiers HER301-G Thru. HER308-G Voltage: 50 to 1000 V Current: 3.0 A RoHS Device Features -Glass passivated chip. -Low forward voltage. -High reliability. -High surge current capability. -High speed switching. Mechanical data -Case: JEDEC DO-27 molded plastic. -Epoxy: UL 94V-0 rate flame retardant. -Polarity: Color band denotes cathode end. -Lead: Solderable per MIL-STD-202, method 208 guaranteed. -Mounting position: Any -Weight: 0.844 grams COMCHIP SMD Diodes Specialist DO-27 1.000(25.40) Min. 0.209(5.30) DIA. 0.189(4.79) DIA. 0.375(9.53) 0.285(7.24) 1.000(25.40) Min. 0.051(1.30) DIA. 0.047(1.19) DIA.
