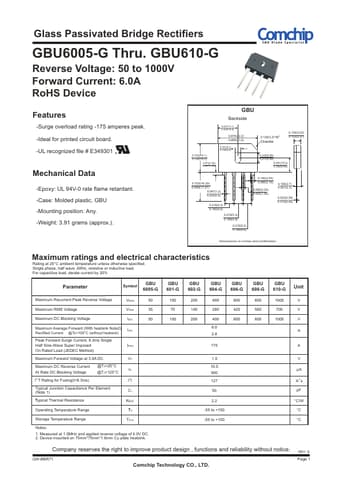

GBU6005-G - Glass Passivated Bridge Rectifiers

Comchip

Datasheet Details

Part number	GBU6005-G
Manufacturer	Comchip
File Size	73.55 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	GBU6005-G-Comchip.pdf

-Surge overload rating -175 amperes peak. -Ideal for printed circuit board. -UL recognized file # E349301 R Mechanical Data -Epoxy: UL 94V-0 rate flame retardant. -Case: Molded plastic, GBU -Mounting position: Any. -Weight: 3.91 grams (approx. ). GBU Backside 0.437(11.1) 0.430(10.9) 0.874(22.2) 0.860(21.8) 0.752(19.1) 0.720(18.3) 0.073(1.85) 0.057(1.45) 0.161(4.1) 0.134(3.4) 0.126(3.2).
45° Chamfer 0.139(3.53) 0.133(3.37) 0.232(5.90) 0.213(5.40) 0.401(10.2) 0.392(9.80) 0.720(18.29) 0.
