GBJ1501-G, GBJ15005-G Glass Passivated Bridge Rectifiers

GBJ1501-G Description

Glass Passivated Bridge Rectifiers GBJ15005-G Thru.GBJ1510-G Reverse Voltage: 50 to 1000V Forward Current: 15 A RoHS Device .

GBJ1501-G Features

* -Rating to 1000V PRV. -Ideal for printed circuit board. -Low forward voltage drop. -High current capability. -UL recognized file # E349301 R Mechanical Data -Epoxy: UL 94V-0 rate flame retardant. -Case: Molded plastic, GBJ -Mounting position: Any -Weight: 6.81grams GBJ Φ0.134(3.4) Φ0.122(3.1) 0.11

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBJ1501-G, GBJ15005-G. Please refer to the document for exact specifications by model.

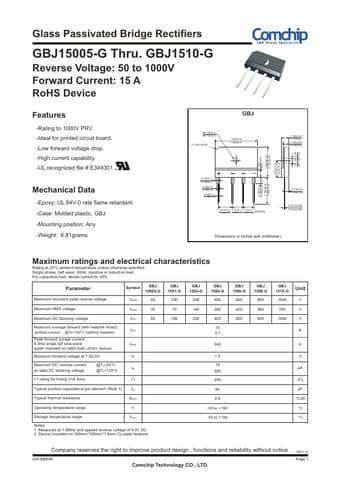

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBJ1501-G, GBJ15005-G
Manufacturer
Comchip
File Size
69.42 KB
Datasheet
GBJ15005-G-Comchip.pdf
Description
Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: GBJ1501-G, GBJ15005-G.
Please refer to the document for exact specifications by model.
