GBJ1004-G - Glass Passivated Bridge Rectifiers

Download the GBJ1004-G datasheet PDF. This datasheet also covers the GBJ10005-G variant, as both devices belong to the same glass passivated bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • -Rating to 1000V PRV. -Ideal for printed circuit board. -Low forward voltage drop. -High current capability. -UL recognized file # E349301 R Mechanical Data -Epoxy: UL 94V-0 rate flame retardant. -Case: Molded plastic, GBJ -Mounting position: Any. -Weight: 6.81grams. GBJ Φ0.134(3.4) Φ0.122(3.1) 0.118(3.00).
  • 45° 1.193(30.3) 1.169(29.7) MAX 0.198 (5.1) 0.106(2.7) 0.096(2.3) + 0.094(2.4) 0.078(2.0) 0.043(1.1) 0.035(0.9) ~~_ 0.402(10.2) 0.386(9.8) 0.303(7.7) 0.287(7.3) 0.303(7.7) 0.2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBJ10005-G-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBJ1004-G
Manufacturer Comchip
File Size 69.98 KB
Description Glass Passivated Bridge Rectifiers
Datasheet download datasheet GBJ1004-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBJ1004 10A GLASS PASSIVATED BRIDGE RECTIFIER Diodes Incorporated
GBJ1004 10 Amp Glass Passivated Bridge Rectifier Micro Commercial Components
GBJ1004 10A Miniature Glass Passivated Single-Phase Bridge Rectifiers CITC
GBJ1004 Bridge Rectifiers Yangzhou Yangjie
GBJ1004 GLASS PASSIVATED BRIDGE RECTIFIER KD

Other Datasheets by Comchip

Part Number Description
GBJ10005-G Glass Passivated Bridge Rectifiers
GBJ1001-G Glass Passivated Bridge Rectifiers
GBJ1002-G Glass Passivated Bridge Rectifiers
GBJ1006-G Glass Passivated Bridge Rectifiers
GBJ1008-G Glass Passivated Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

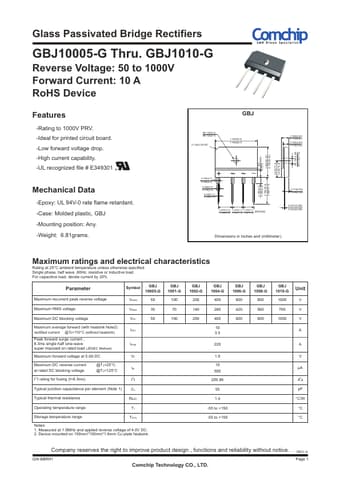

Glass Passivated Bridge Rectifiers GBJ10005-G Thru. GBJ1010-G Reverse Voltage: 50 to 1000V Forward Current: 10 A RoHS Device Features -Rating to 1000V PRV. -Ideal for printed circuit board. -Low forward voltage drop. -High current capability. -UL recognized file # E349301 R Mechanical Data -Epoxy: UL 94V-0 rate flame retardant. -Case: Molded plastic, GBJ -Mounting position: Any. -Weight: 6.81grams. GBJ Φ0.134(3.4) Φ0.122(3.1) 0.118(3.00)*45° 1.193(30.3) 1.169(29.7) MAX 0.198 (5.1) 0.106(2.7) 0.096(2.3) + 0.094(2.4) 0.078(2.0) 0.043(1.1) 0.035(0.9) ~~_ 0.402(10.2) 0.386(9.8) 0.303(7.7) 0.287(7.3) 0.303(7.7) 0.287(7.3) SPACING 0.165(4.2) 0.142(3.6) 0.708(18.0) 0.669(17.0) 0.800(20.30) 0.776(19.70) 0.441(11.2) 0.425(10.8) Φ0.134(3.40) Φ0.122(3.10) 0.189(4.80) 0.173(4.
