CJM1206-G - P-Channel MOSFET

Product Overview

Comchip

Part number	CJM1206-G
Manufacturer	Comchip
File Size	115.31 KB
Description	P-Channel MOSFET
Datasheet	CJM1206-G Datasheet

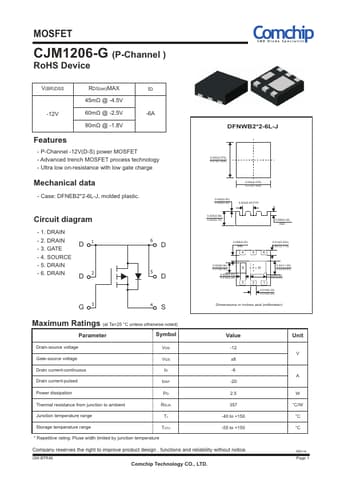

Additional preview pages of the CJM1206-G datasheet.

- P-Channel -12V(D-S) power MOSFET - Advanced trench MOSFET process technology - Ultra low on-resistance with low gate charge DFNWB2.
2-6L-J 0.082(2.076) 0.076(1.924) Mechanical data - Case: DFNEB2.
2-6L-J, molded plastic. 0.082(2.076) 0.076(1.924) 0.002(0.05) 0.000(0.00) 0.026(0.65)TYP. Circuit diagram - 1. DRAIN - 2. DRAIN - 3. GATE D1 - 4. SOURCE - 5. DRAIN - 6. DRAIN D2 G3 6D 5 D 4S 0.035(0.90) 0.028(0.70) 0.008(0.20) REF. 0.008(0.20) MIN. 4 5 0.013(0.326) 0.007(0.1.
