BR2510-G - Silicon Bridge Rectifiers

Download the BR2510-G datasheet PDF. This datasheet also covers the BR20005-G variant, as both devices belong to the same silicon bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • -Surge overload -240~500 Amperes peak. -Low forward voltage drop. -Electrically isolated base -2000 Volts. -Materials used carries UL recognition. -Solderable 0.25" FAST ON terminals. -UL recognized file # E349301 R Mechanical Data -Polarity: As marked on Body -Mounting position: Any -Weight: 19.09 grams BR METAL HEAT SINK 0.94 (2.40) diam 0.254(6.45) 0.242(6.15) 0.442(11.23) 0.424(10.77) 0.925(23.50) 0.886(22.50) 0.035(0.90) 0.028(0.70) 1.133(28.80) 1.114(28.30) 0.673(17.10) 0.634(16.10).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BR20005-G-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BR2510-G
Manufacturer Comchip
File Size 66.68 KB
Description Silicon Bridge Rectifiers
Datasheet download datasheet BR2510-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BR2510 SINGLE-PHASE SILICON BRIDGE RECTIFIER Rectron Semiconductor
BR2510 TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components
BR2510 (BR25005 - BR2510) Silicon Bridge Rectifiers Luguang Electronic
BR2510 Silicon Bridge Rectifiers Galaxy Microelectronics
BR2510 Silicon Bridge Rectifiers CumSumI

Other Datasheets by Comchip

Part Number Description
BR25005-G Silicon Bridge Rectifiers
BR2501-G Silicon Bridge Rectifiers
BR2502-G Silicon Bridge Rectifiers
BR2504-G Silicon Bridge Rectifiers
BR2506-G Silicon Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

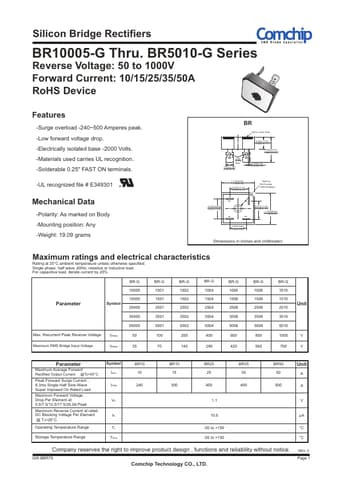

Silicon Bridge Rectifiers BR10005-G Thru. BR5010-G Series Reverse Voltage: 50 to 1000V Forward Current: 10/15/25/35/50A RoHS Device Features -Surge overload -240~500 Amperes peak. -Low forward voltage drop. -Electrically isolated base -2000 Volts. -Materials used carries UL recognition. -Solderable 0.25" FAST ON terminals. -UL recognized file # E349301 R Mechanical Data -Polarity: As marked on Body -Mounting position: Any -Weight: 19.09 grams BR METAL HEAT SINK 0.94 (2.40) diam 0.254(6.45) 0.242(6.15) 0.442(11.23) 0.424(10.77) 0.925(23.50) 0.886(22.50) 0.035(0.90) 0.028(0.70) 1.133(28.80) 1.114(28.30) 0.673(17.10) 0.634(16.10) Hole for No.8 screw 193"(4.9)diam 0.732(18.60) 0.693(17.60) ~ - + 0.673(17.10) 0.634(16.10) 1.133(28.80) ~ 1.114(28.30) 0.583(14.80) 0.543(13.
