AUSMBJ58A-HF, AUSMBJ10A-HF - SMD Transient Voltage Suppressor

Name: AUSMBJ58A-HF
SKU: AUSMBJ58A-HF-1582884

Comchip

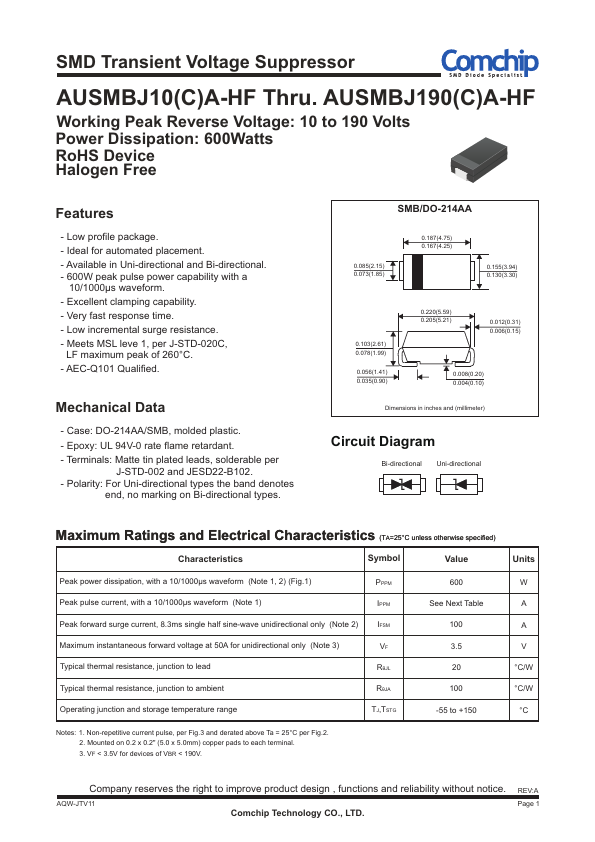

The AUSMBJ58A-HF by Comchip is a SMD Transient Voltage Suppressor. Below is the official datasheet preview.

Datasheet Details

Part number	AUSMBJ58A-HF, AUSMBJ10A-HF
Manufacturer	Comchip
File Size	474.21 KB
Description	SMD Transient Voltage Suppressor
Datasheet	AUSMBJ10A-HF-Comchip.pdf
Note	This datasheet PDF includes multiple part numbers: AUSMBJ58A-HF, AUSMBJ10A-HF. Please refer to the document for exact specifications by model.

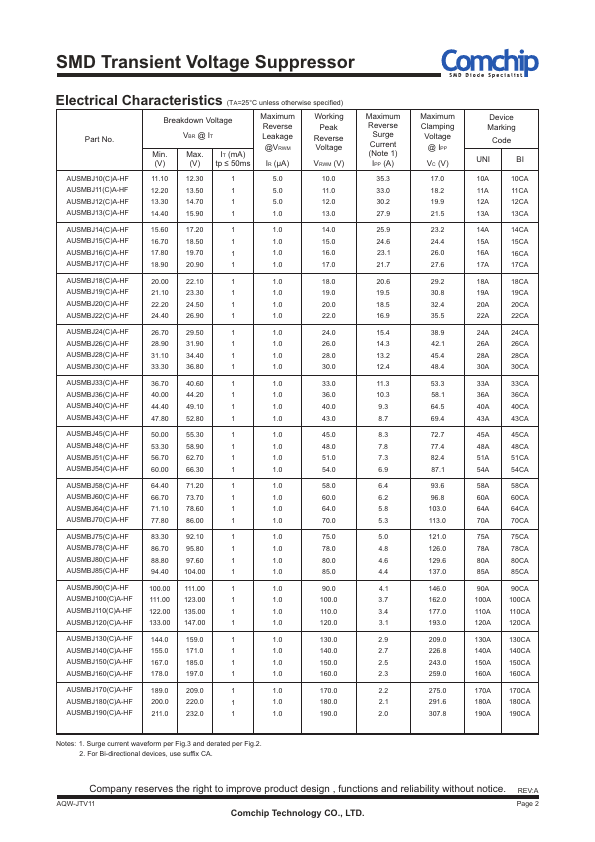

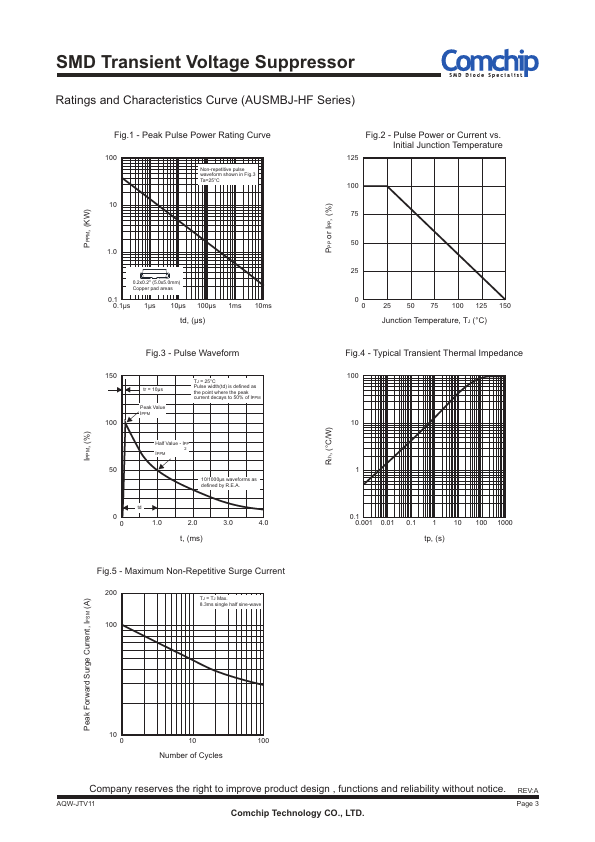

Additional preview pages of the AUSMBJ58A-HF datasheet.

- Low proﬁle package. - Ideal for automated placement. - Available in Uni-directional and Bi-directional. - 600W peak pulse power capability with a 10/1000µs waveform. - Excellent clamping capability. - Very fast response time. - Low incremental surge resistance. - Meets MSL leve 1, per J-STD-020C, LF maximum peak of 260°C. - AEC-Q101 Qualiﬁed. Mechanical Data - Case: DO-214AA/SMB, molded plastic. - Epoxy: UL 94V-0 rate ﬂame retardant. - Terminals: Matte tin plated leads, solderable per J-STD-00.
