ABS8-G, ABS05-G - SMD Glass Passivated Bridge Rectifiers

Name: ABS8-G
SKU: ABS8-G-753434

Comchip

The ABS8-G by Comchip is a SMD Glass Passivated Bridge Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	ABS8-G, ABS05-G
Manufacturer	Comchip
File Size	112.16 KB
Description	SMD Glass Passivated Bridge Rectifiers
Datasheet	ABS05-G_Comchip.pdf
Note	This datasheet PDF includes multiple part numbers: ABS8-G, ABS05-G. Please refer to the document for exact specifications by model.

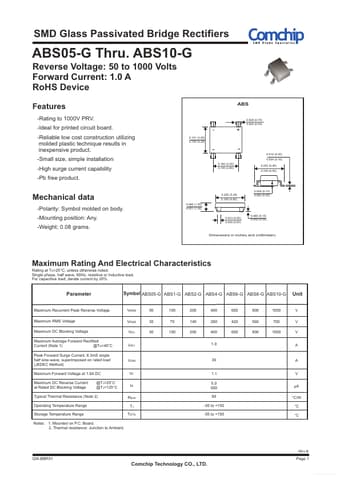

Additional preview pages of the ABS8-G datasheet.

-Rating to 1000V PRV. -Ideal for printed circuit board. -Reliable low cost construction utilizing molded plastic technique results in inexpensive product. -Small size, simple installation -High surge current capability -Pb free product. 0.165 (4.20) 0.150 (3.80) 0.181 (4.60) 0.165 (4.20) ABS 0.028 (0.70) 0.020 (0.50) - + ~ ~ 0.012 (0.30) 0.004 (0.10) 0.252 (6.40) 0.236 (6.00) Mechanical data -Polarity: Symbol molded on body. -Mounting position: Any. -Weight: 0.08 grams. 0.060 (1.50) 0.051.
