A5KP5.0A-G - 5000W Transient Voltage Suppressor

Comchip

Datasheet Details

Part number	A5KP5.0A-G
Manufacturer	Comchip
File Size	90.67 KB
Description	5000W Transient Voltage Suppressor

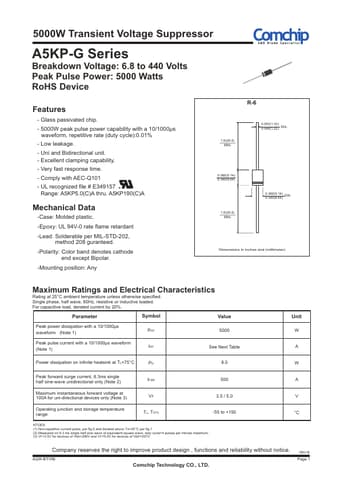

Datasheet	A5KP5.0A-G-Comchip.pdf

- Glass passivated chip. - 5000W peak pulse power capability with a 10/1000µs waveform, repetitive rate (duty cycle):0.01% - Low leakage. - Uni and Bidirectional unit. - Excellent clamping capability. - Very fast response time. - Comply with AEC-Q101 - UL recognized file # E349157 R - Range: A5KP5.0(C)A thru. A5KP190(C)A Mechanical Data -Case: Molded plastic. -Epoxy: UL 94V-0 rate flame retardant -Lead: Solderable per MIL-STD-202, method 208 guranteed. -Polarity: Color band denotes cathode end e.
