5KP24CA-G - 5000W Transient Voltage Suppressor

Download the 5KP24CA-G datasheet PDF. This datasheet also covers the 5KP5.0A-G variant, as both devices belong to the same 5000w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • - Glass passivated chip. - 5000W peak pulse power capability with a 10/1000µs waveform, repetitive rate (duty cycle):0.01% - Low leakage. - Uni and Bidirectional unit. - Excellent clamping capability. - Very fast response time. - UL recognized file # E349157 R - Range: 5KP5.0(C)A thru. 5KP190(C)A Mechanical Data -Case: Molded plastic. -Epoxy: UL 94V-0 rate flame retardant -Lead: Solderable per MIL-STD-202, method 208 guranteed. -Polarity: Color band denotes cathode end except Bipolar. -Mounting.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5KP5.0A-G-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 5KP24CA-G
Manufacturer Comchip
File Size 90.54 KB
Description 5000W Transient Voltage Suppressor
Datasheet download datasheet 5KP24CA-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
5KP24CA-HR TVS Diodes Littelfuse
5KP24CA-HRA TVS Diodes Littelfuse
5KP24CA 5000 Watt Axial Lead TVS GW
5KP24CA Axial Lead Transient Voltage Suppressors SOCAY
5KP24CA TVS LITE-ON

Other Datasheets by Comchip

Part Number Description
5KP24CA-HF 5000W Transient Voltage Suppressor
5KP24A-G 5000W Transient Voltage Suppressor
5KP24A-HF 5000W Transient Voltage Suppressor
5KP200A-G 5000W Transient Voltage Suppressor
5KP200A-HF 5000W Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

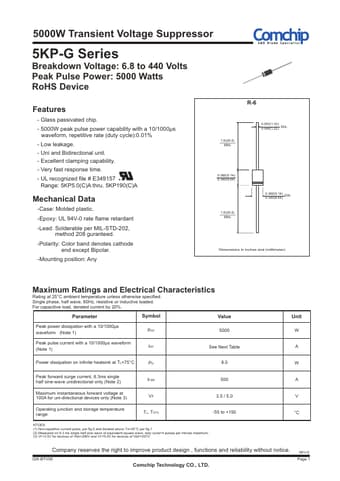

5000W Transient Voltage Suppressor 5KP-G Series Breakdown Voltage: 6.8 to 440 Volts Peak Pulse Power: 5000 Watts RoHS Device Features - Glass passivated chip. - 5000W peak pulse power capability with a 10/1000µs waveform, repetitive rate (duty cycle):0.01% - Low leakage. - Uni and Bidirectional unit. - Excellent clamping capability. - Very fast response time. - UL recognized file # E349157 R - Range: 5KP5.0(C)A thru. 5KP190(C)A Mechanical Data -Case: Molded plastic. -Epoxy: UL 94V-0 rate flame retardant -Lead: Solderable per MIL-STD-202, method 208 guranteed. -Polarity: Color band denotes cathode end except Bipolar. -Mounting position: Any R-6 1.0(25.4) MIN. 0.052(1.32) 0.048(1.22) DIA. 0.360(9.14) 0.340(8.64) 1.0(25.4) MIN. 0.360(9.14) 0.340(8.64) DIA.
