TV04A110J-G - SMD Transient Voltage Suppressor

Download the TV04A110J-G datasheet PDF. This datasheet also covers the TV04A5V0-G variant, as both devices belong to the same smd transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • -Ideal for surface mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TV04A5V0-G-ComchipTechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TV04A110J-G
Manufacturer Comchip Technology
File Size 129.96 KB
Description SMD Transient Voltage Suppressor
Datasheet download datasheet TV04A110J-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TV045 Temperature Compensated Crystal Oscillator RAMI TECHNOLOGY
TV00570002CDGB MULTI-CHIP INTEGRATED CIRCUIT SILICON GATE CMOS Toshiba
TV00570003CDGB MULTI-CHIP INTEGRATED CIRCUIT SILICON GATE CMOS Toshiba
TV050B010S4PT Transient Voltage Suppressor Vishay
TV050B011S4PT Transient Voltage Suppressor Vishay

Other Datasheets by Comchip Technology

Part Number Description
TV04A110J-HF SMD Transient Voltage Suppressor
TV04A110J SMD Transient Voltage Suppressor
TV04A110JB SMD Transient Voltage Suppressor
TV04A110JB-G SMD Transient Voltage Suppressor
TV04A110JB-HF SMD Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

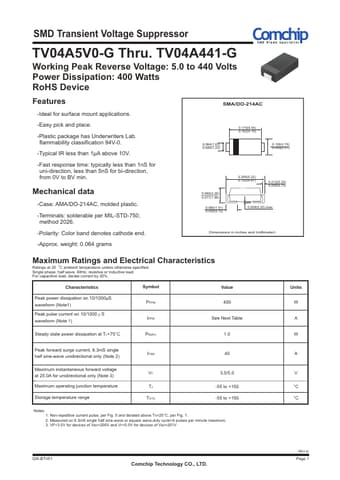

SMD Transient Voltage Suppressor TV04A5V0-G Thru. TV04A441-G Working Peak Reverse Voltage: 5.0 to 440 Volts Power Dissipation: 400 Watts RoHS Device Features -Ideal for surface mount applications. -Easy pick and place. -Plastic package has Underwriters Lab. flammability classification 94V-0. -Typical IR less than 1μA above 10V. -Fast response time: typically less than 1nS for uni-direction, less than 5nS for bi-direction, from 0V to BV min. Mechanical data -Case: AMA/DO-214AC, molded plastic. -Terminals: solderable per MIL-STD-750, method 2026. -Polarity: Color band denotes cathode end. -Approx. weight: 0.064 grams SMA/DO-214AC 0.064(1.63) 0.049(1.23) 0.179(4.55) 0.162(4.10) 0.109(2.76) 0.099(2.51) 0.089(2.26) 0.077(1.96) 0.060(1.51) 0.030(0.75) 0.206(5.22) 0.192(4.87) 0.012(0.
