SR204-G, SR202-G Schottky Barrier Rectifier

SR204-G Description

www.DataSheet4U.com Schottky Barrier Rectifier COMCHIP SMD Diodes Specialist SR202-G Thru.SR210-G Forward current: 2.0A Reverse voltage: 20 to 100.

SR204-G Features

* -Fast switching. -Low forward voltage, high current capability. -Low power loss, high efficiency. -High current surge capability. -High temperature soldering guaranteed: 250 OC/10 seconds, 0.375” (9.5mm) lead length at 5lbs (2.3kg) tension. 1.0(25.4) min. 0.034(0.90) 0.028(0.70) DO-15 0.300(7.60)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR204-G, SR202-G. Please refer to the document for exact specifications by model.

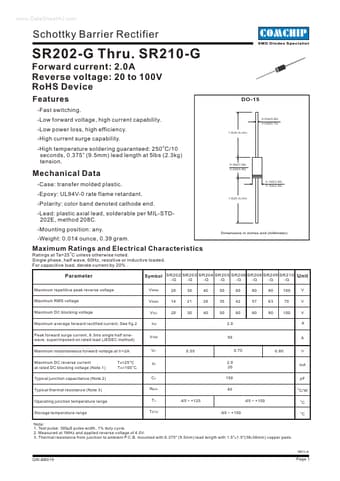

datasheet Preview Page 2

Datasheet Details

Part number
SR204-G, SR202-G
Manufacturer
Comchip Technology
File Size
69.59 KB
Datasheet
SR202-G_ComchipTechnology.pdf
Description
Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: SR204-G, SR202-G.
Please refer to the document for exact specifications by model.
