SF8A01F-G - (SF8A01F-G - SF8A06F-G) Glass Passivated Super Fast Recovery Rectifier

Name: SF8A01F-G
SKU: SF8A01F-G-595025

Comchip Technology

The SF8A01F-G by Comchip Technology is a (SF8A01F-G - SF8A06F-G) Glass Passivated Super Fast Recovery Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

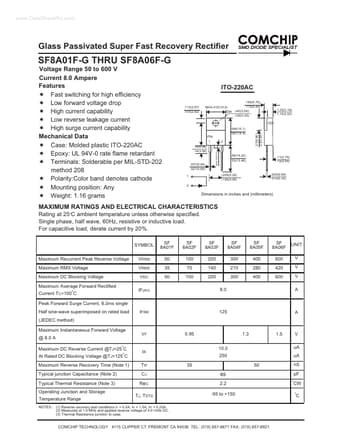

SF8A01F-G (SF8A01F-G - SF8A06F-G) Glass Passivated Super Fast Recovery Rectifier by Comchip Technology - Datasheet Preview — Official preview page of the **SF8A01F-G** (SF8A01F-G - SF8A06F-G) Glass Passivated Super Fast Recovery Rectifier datasheet (Comchip Technology).

Datasheet Details

Part number	SF8A01F-G
Manufacturer	Comchip Technology
File Size	74.07 KB
Description	(SF8A01F-G - SF8A06F-G) Glass Passivated Super Fast Recovery Rectifier
Datasheet	SF8A01F-G_ComchipTechnology.pdf
Additional preview pages of the SF8A01F-G datasheet.

SF8A01F-G Product details

Features

Fast switching for high efficiency Low forward voltage drop High current capability Low reverse leakage current High surge current capability Mechanical Data Case: Molded plastic ITO-220AC Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 Polarity:Color band denotes cathode Mounting position: Any Weight: 1.16 grams ITO-220AC .113(2.87) .103(2.62) .185(4.70) .175(4.44) MAX.412(10.5) DIA .140(3.56) .130(3.30) 1.25(3.18) 1.15(2.92) PIN 1 MAX.0.05(1.5) 2 .16(4.
