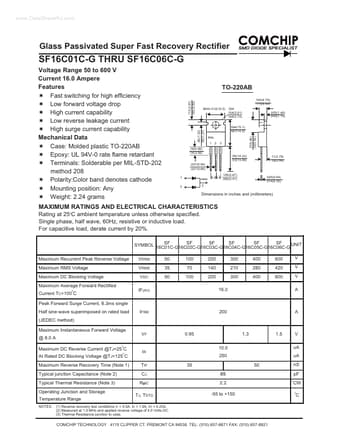

SF16C04C-G, SF16C01C-G - Glass Passivated Super Fast Recovery Rectifier

Comchip Technology

Datasheet Details

Part number	SF16C04C-G, SF16C01C-G
Manufacturer	Comchip Technology
File Size	74.40 KB
Description	Glass Passivated Super Fast Recovery Rectifier
Datasheet	SF16C01C-G_ComchipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: SF16C04C-G, SF16C01C-G. Please refer to the document for exact specifications by model.

Fast switching for high efficiency Low forward voltage drop High current capability Low reverse leakage current High surge current capability Mechanical Data Case: Molded plastic TO-220AB Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 Polarity:Color band denotes cathode Mounting position: Any Weight: 2.24 grams TO-220AB .113(2.87) .103(2.62) .185(4.70) .175(4.44) MAX.412(10.5) DIA .154(3.91) .148(3.74) .594(15.1) .587(14.9) PIN 1 2 3 .27(6.86) .23(5.84) .05.
