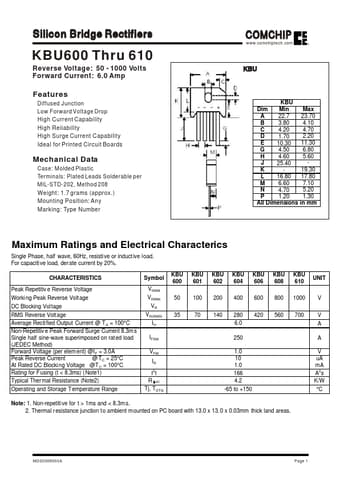

KBU606 Datasheet Preview — Preview of KBU606 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	KBU606
Manufacturer	Comchip Technology
File Size	138.10 KB
Description	Silicon Bridge Rectifiers
Datasheet	KBU606_ComchipTechnology.pdf

KBU606 Product details

Features

Diffused Junction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Ideal for Printed Circuit Boards Mechanical Data Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Weight: 1.7 grams (approx. ) Mounting Position: Any Marking: Type Number KBU Dim Min Max A 23.70 22.7 B 4.10 3.80 C 4.70 4.20 D 2.20 1.70 E 11.30 10.30 G 6.80 4.50 H 5.60 4.60 J 25.40 K 19.30 L 17.80 16.80 M 7.10 6.60 N 5.20 4.70 P 1.20 1.30 All Dime.
