www.DataSheet4U.com

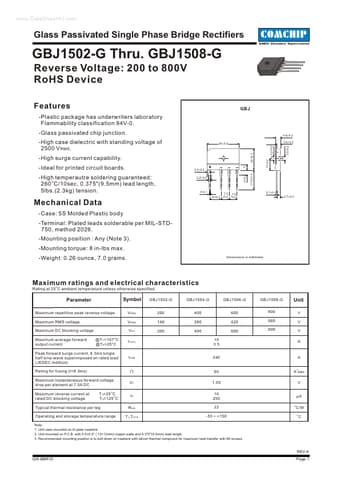

Glass Passivated Single Phase Bridge Rectifiers
COMCHIP
SMD Diodes Specialist
GBJ1502-G Thru. GBJ1508-G
Reverse Voltage: 200 to 800V RoHS Device
Features
-Plastic package has underwriters laboratory Flammability classification 94V-0. -Glass passivated chip junction.
3.2 ±0.2
GBJ
4.6 ± 0.2 30 ± 0.3 3.6± 0.2
3.5 ±0.2
-High case dielectric with standing voltage of 2500 V RMS . -High surge current capability. -Ideal for printed circuit boards. -High temperautre soldering guaranteed: 260 OC/10sec, 0.375"(9.5mm) lead length, 5lbs.(2.3kg) tension.
2.5 ± 0.2 2.2± 0.2
20 ± 0.3
+
1± 0.1
17.5 ± 0.5
4 ±0.2
7.5 7.5 10 ± 0.2 ± 0.2 ± 0.2
11± 0.2
5
0.7 ± 0.1 2.7± 0.
