DF01M-G, DF08M-G - Single-Phase Bridge Rectifiers

Comchip Technology

Datasheet Details

Part number	DF01M-G, DF08M-G
Manufacturer	Comchip Technology
File Size	58.90 KB
Description	Single-Phase Bridge Rectifiers

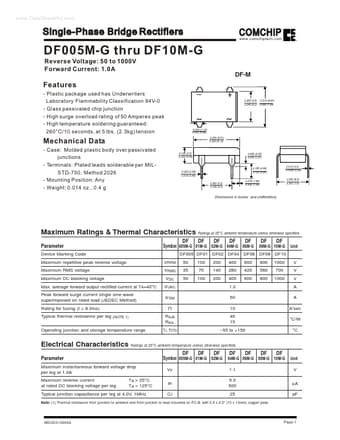

Datasheet	DF08M-G-ComchipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: DF01M-G, DF08M-G. Please refer to the document for exact specifications by model.

- Plastic package used has Underwriters Laboratory Flammability Classification 94V-0 - Glass passivated chip junction - High surge overload rating of 50 Amperes peak - High temperature soldering guaranteed: 260°C/10 seconds, at 5 lbs. (2.3kg) tension Mechanical Data - Case: Molded plastic body over passivated junctions - Terminals: Plated leads solderable per MILSTD-750, Method 2026 - Mounting Position: Any - Weight: 0.014 oz. , 0.4 g 0.045 (1.14) 0.035 (0.89) 0.335 (8.51) 0.320 (8.12) 0.130 (3.
