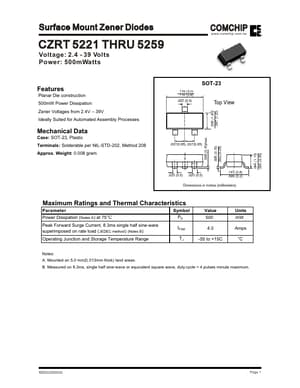

CZRT5243 - Surface Mount Zener Diodes

Comchip Technology

Datasheet Details

Planar Die construction 500mW Power Dissipation Zener Voltages from 2.4V.
39V Ideally Suited for Automated Assembly Processes Top View .056 (1.40) .047 (1.20) .006 (0.15) .002 (0.05) Mechanical Data Terminals: Solderable per NIL-STD-202, Method 208 Approx. Weight: 0.008 gram .037(0.95) .037(0.95) .006 (0.15)max. Case: SOT-23, Plastic .020 (0.5) .020 (0.5) .103 (2.6) .086 (2.2) Dimensions in inches (millimeters) Maximum Ratings and Thermal Characteristics Parameter Power Disspati.
