CZRM27C13P - Surface Mount Zener Diode

Comchip Technology

Datasheet Details

Part number	CZRM27C13P
Manufacturer	Comchip Technology
File Size	88.58 KB
Description	Surface Mount Zener Diode
Datasheet	CZRM27C13P_ComchipTechnology.pdf

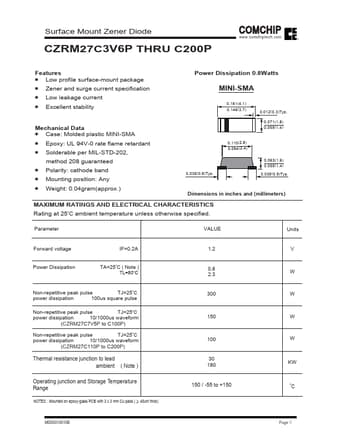

Low profile surface-mount package Zener and surge current specification Low leakage current Excellent stability Power Dissipation 0.8Watts MINI-SMA 0.161(4.1) 0.146(3.7) 0.012(0.3)Typ. 0.071(1.8) 0.055(1.4) Mechanical Data Case: Molded plastic MINI-SMA Epoxy: UL 94V-0 rate flame retardant Solderable per MIL-STD-202, method 208 guaranteed Polarity: cathode band Mounting position: Any Weight: 0.04gram(approx. ) 0.035(0.9)Typ. 0.110(2.8) 0.094(2.4) 0.063(1.6) 0.055(1.4) 0.035.
