CZRA5921B-G - (CZRA5920B-G - CZRA5956B-G) SMD Zener Diode

Download the CZRA5921B-G datasheet PDF (CZRA5920B-G included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (czra5920b-g - czra5956b-g) smd zener diode.

Features

  • Glass passivated chip. Low leakage. Built-in strain relief. Low inductance. High peak reverse power dissipa. Lead(Pb)-free component. For use in stabilizing and clipping circuits with high power. Mechanical data Case: DO-214AC(SMA), Molded plastic. Epoxy: UL 94V-0 rate flame retardant. Terminals: Solderable per MIL-STD-750 ,method 2026. Polarity: Color band denotes cathode. Mounting position: Any. DO-214AC (SMA) 0.064(1.63) 0.048(1.23) 0.173(4.40) 0.155(3.94) 0.109(2.76) 0.099(2.51) 0.089(2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CZRA5920B-G_ComchipTechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CZRA5921B-G
Manufacturer Comchip Technology
File Size 185.09 KB
Description (CZRA5920B-G - CZRA5956B-G) SMD Zener Diode
Datasheet download datasheet CZRA5921B-G Datasheet

📁 Similar Datasheet

Other Datasheets by Comchip Technology
  • CZRA5920B-G - (CZRA5920B-G - CZRA5956B-G) SMD Zener Diode
  • CZRA5922B-G - (CZRA5920B-G - CZRA5956B-G) SMD Zener Diode
  • CZRA5923B-G - (CZRA5920B-G - CZRA5956B-G) SMD Zener Diode
  • CZRA5924B-G - (CZRA5920B-G - CZRA5956B-G) SMD Zener Diode
  • CZRA5925B-G - (CZRA5920B-G - CZRA5956B-G) SMD Zener Diode
  • CZRA5926B-G - (CZRA5920B-G - CZRA5956B-G) SMD Zener Diode
  • CZRA5927B-G - (CZRA5920B-G - CZRA5956B-G) SMD Zener Diode
  • CZRA5928B-G - (CZRA5920B-G - CZRA5956B-G) SMD Zener Diode

Full PDF Text Transcription

Click to expand full text

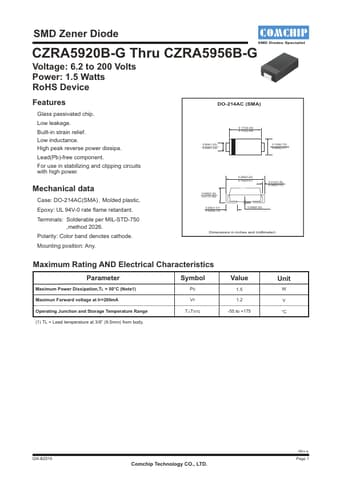

SMD Zener Diode SMD Diodes Specialist CZRA5920B-G Thru CZRA5956B-G Voltage: 6.2 to 200 Volts Power: 1.5 Watts RoHS Device Features Glass passivated chip. Low leakage. Built-in strain relief. Low inductance. High peak reverse power dissipa. Lead(Pb)-free component. For use in stabilizing and clipping circuits with high power. Mechanical data Case: DO-214AC(SMA), Molded plastic. Epoxy: UL 94V-0 rate flame retardant. Terminals: Solderable per MIL-STD-750 ,method 2026. Polarity: Color band denotes cathode. Mounting position: Any. DO-214AC (SMA) 0.064(1.63) 0.048(1.23) 0.173(4.40) 0.155(3.94) 0.109(2.76) 0.099(2.51) 0.089(2.26) 0.077(1.96) 0.059(1.51) 0.030(0.75) 0.206(5.22) 0.192(4.87) 0.012(0.30) 0.006(0.15) 0.008(0.
