AM158-G - Silicon Miniature Single-Phase Bridge

Product Overview

Comchip Technology

Part number	AM158-G
Manufacturer	Comchip Technology
File Size	80.07 KB
Description	Silicon Miniature Single-Phase Bridge
Datasheet	AM158-G Datasheet
Note	This datasheet PDF includes multiple part numbers: AM158-G, AM100-G. Please refer to the document for exact specifications by model.

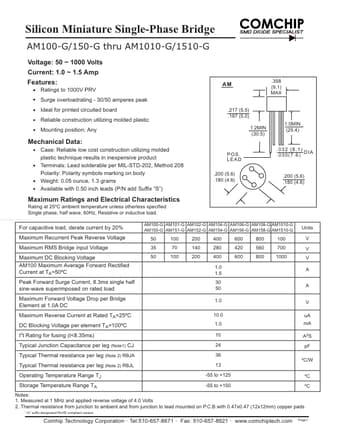

Additional preview pages of the AM158-G datasheet.

Ratings to 1000V PRV Surge overloadrating - 30/50 amperes peak Ideal for printed circuited board Reliable construction utilizing molded plastic Mounting position: Any .217 (5.5) .197 (5.0) 1.2MIN (30.5) 1.0MIN (25.4) AM .358 (9.1) MAX Mechanical Data: Case: Reliable low cost construction utilizing molded plastic technique results in inexpensive product Terminals: Lead solderable per MIL-STD-202, Method 208 Polarity: Polarity symbols marking on body Weight: 0.05 ounce, 1.3 grams Available wit.
