SER1052 Datasheet (Coilcraft) - Shielded Power Inductors

SER1052, Shielded Power Inductors

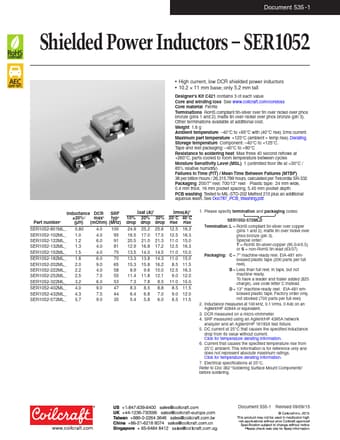

Document 535 -1 Shielded Power Inductors SER1052 High current, low DCR shielded power inductors 10.2 × 11 mm base; only 5.2 mm tall Designer’s Kit C421 contains 3 of each value Core and winding loss See www.coilcraft.com/coreloss Core material Ferrite Terminations RoHS compliant tin-silver over tin over nickel over phos bronze (pins 1 and 2); matte tin over nickel over phos bronze (pin 3).

Other terminations available at additional cost.

Weight 1.6 g Ambient te
