PWB1010-1L - Surface Mount Wideband RF Transformers

Download the PWB1010-1L datasheet PDF. This datasheet also covers the PWB2010-1L variant, as both devices belong to the same surface mount wideband rf transformers family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PWB2010-1L_Coilcraft.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PWB1010-1L
Manufacturer Coilcraft
File Size 325.67 KB
Description Surface Mount Wideband RF Transformers
Datasheet download datasheet PWB1010-1L Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PWB100A THYRISTOR MODULE (NON-ISOLATED TYPE) SanRex Corporation
PWB100A Non-isolated Thyristor Module Naina Semiconductor
PWB100A30 Non-isolated Thyristor Module Naina Semiconductor
PWB100A40 Non-isolated Thyristor Module Naina Semiconductor
PWB130A THYRISTOR MODULE (NON-ISOLATED TYPE) SanRex Corporation

Other Datasheets by Coilcraft

Part Number Description
PWB1010L Surface Mount Wideband RF Transformers
PWB1015L Surface Mount Wideband RF Transformers
PWB1040L Surface Mount Wideband RF Transformers
PWB-1-AL Surface Mount Wideband RF Transformers
PWB-1-BL Surface Mount Wideband RF Transformers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

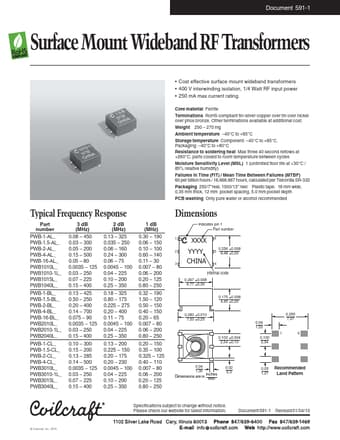

Document 591-1 Surface Mount Wideband RF Transformers • Cost effective surface mount wideband transformers • 400 V interwinding isolation, 1/4 Watt RF input power • 250 mA max current rating. Core material Ferrite Terminations RoHS compliant tin-silver-copper over tin over nickel over phos bronze. Other terminations available at additional cost. Weight 250 – 270 mg Ambient temperature –40°C to +85°C Storage temperature Component: –40°C to +85°C.
