DS1608C-684 - SMT Power Inductors

Download the DS1608C-684 datasheet PDF. This datasheet also covers the DS1608C variant, as both devices belong to the same smt power inductors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DS1608C_Coilcraft.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DS1608C-684
Manufacturer Coilcraft
File Size 136.65 KB
Description SMT Power Inductors
Datasheet download datasheet DS1608C-684 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS1608 EconoRAM Time Chip Dallas Semiconductor
DS160-40THD02 SCHOTTKY BARRIER DIODE JCET
DS1602 Elapsed Time Counter Maxim Integrated
DS1603 TRI-STATE Dual Receiver National
DS1603 Elapsed Time Counter Maxim Integrated

Other Datasheets by Coilcraft

Part Number Description
DS1608C-684JLB Shielded Power Inductors
DS1608C-684JLC Shielded Power Inductors
DS1608C-684JLD Shielded Power Inductors
DS1608C-684KLB Shielded Power Inductors
DS1608C-684KLC Shielded Power Inductors

Full PDF Text Transcription

Click to expand full text

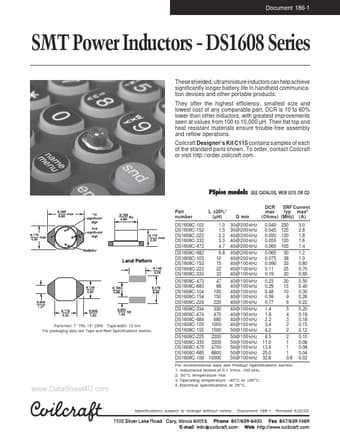

www.DataSheet4U.com Document 186-1 SMT Power Inductors - DS1608 Series These shielded, ultraminiature inductors can help achieve significantly longer battery life in handheld communication devices and other portable products. They offer the highest efficiency, smallest size and lowest cost of any comparable part. DCR is 10 to 60% lower than other inductors, with greatest improvements seen at values from 100 to 10,000 µH. Their flat top and heat resistant materials ensure trouble-free assembly and reflow operations. Coilcraft Designer’s Kit C115 contains samples of each of the standard parts shown. To order, contact Coilcraft or visit http://order.coilcraft.com. Parts/reel: 7″ 750; 13″ 2500 Tape width: 12 mm For packaging data see Tape and Reel Specifications section. www.DataSheet4U.
