Document 295 -1

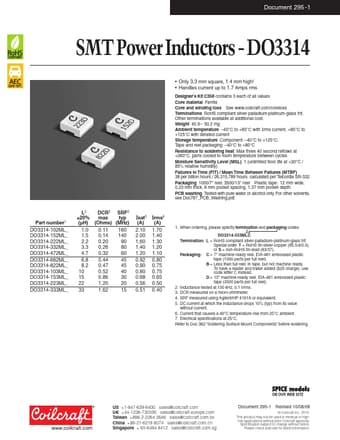

SMTPowerInductors-DO3314
• Only 3.3 mm square, 1.4 mm high! • Handles current up to 1.7 Amps rms
Designer’s Kit C358 contains 3 each of all values Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations RoHS compliant silver-palladium-platinum-glass frit. Other terminations available at additional cost. Weight 45.9 – 50.2 mg Ambient temperature –40°C to +85°C with Irms current, +85°C to +125°C with derated current Storage temperature Component: –40°C to +125°C.
DO3314-102MLD Datasheet
