DA2317-AL SMT Gate Drive Transformers

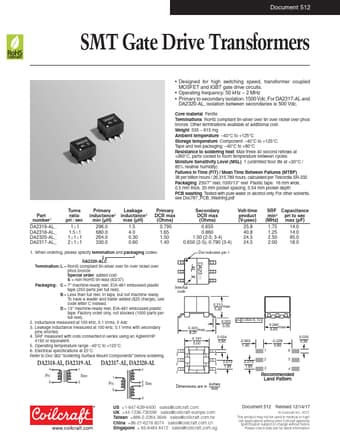

Document 512 SMT Gate Drive Transformers Designed for high switching speed, transformer coupled MOSFET and IGBT gate drive circuits. Operating frequency: 50 kHz 2 MHz Primary to secondary isolation: 1500 Vdc. For DA2317-AL and DA2320-AL, isolation between secondaries is 500 Vdc. Core material Ferrite Terminations RoHS compliant tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost. Weight 535 615 .

DA2319-AL-Coilcraft.pdf

DA2317-AL Datasheet Preview — This datasheet PDF includes multiple part numbers: DA2317-AL, DA2319-AL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DA2317-AL, DA2319-AL

Manufacturer:

Coilcraft

File Size:

94.49 KB

Description:

Smt gate drive transformers.

Note:

This datasheet PDF includes multiple part numbers: DA2317-AL, DA2319-AL.
Please refer to the document for exact specifications by model.
