2508-23N - Low Profile Mini Spring Inductors

Coilcraft

Download the 2508-23N datasheet PDF. This datasheet also covers the 2508-16N variant, as both devices belong to the same low profile mini spring inductors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2508-16N-Coilcraft.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	2508-23N
Manufacturer	Coilcraft
File Size	130.89 KB
Description	Low Profile Mini Spring Inductors
Datasheet	2508-23N Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2508051107Y0	Chip Beads	Fair-Rite Products
2508051217Y0	SM Beads	Fair-Rite Products
2508051817Y0	MULTI-LAYER CHIP BEAD	Fair-Rite Products
2508053007Y0	Chip Beads	Fair-Rite Products
2508055007Y0	Chip Beads	Fair-Rite Products

Other Datasheets by Coilcraft

Part Number	Description
2508-27N	Low Profile Mini Spring Inductors
2508-16N	Low Profile Mini Spring Inductors
2508-18N	Low Profile Mini Spring Inductors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

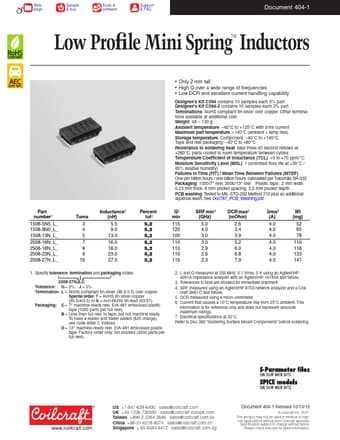

Web page Sample & buy Tools & software Support & FAQ Document 404-1 Low Profile Mini Spring™ Inductors • Only 2 mm tall • High Q over a wide range of frequencies • Low DCR and excellent current handling capability Designer’s Kit C394 contains 10 samples each 5% part Designer’s Kit C394-2 contains 10 samples each 2% part Terminations RoHS compliant tin-silver over copper. Other terminations available at additional cost. Weight 48 – 130 g Ambient temperature –40°C to +125°C with Irms current Maximum part temperature +140°C (ambient + temp rise). Storage temperature Component: –40°C to +140°C.
