150-05J08L - 7mm Tunable RF Coils

Download the 150-05J08L datasheet PDF. This datasheet also covers the 150-01J08L variant, as both devices belong to the same 7mm tunable rf coils family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (150-01J08L-Coilcraft.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 150-05J08L
Manufacturer Coilcraft
File Size 219.75 KB
Description 7mm Tunable RF Coils
Datasheet download datasheet 150-05J08L Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
150-JC6DT3 DIESEL ENGINE-GENERATOR SET MTU Onsite Energy
150-JS6DT3 DIESEL ENGINE-GENERATOR SET MTU Onsite Energy
1502A (1502xA - 1510xA) Single Phase Bridge VMI
1502FA (1502xA - 1510xA) Single Phase Bridge VMI
1502UFA (1502xA - 1510xA) Single Phase Bridge VMI

Other Datasheets by Coilcraft

Part Number Description
150-01J08L 7mm Tunable RF Coils
150-02J08L 7mm Tunable RF Coils
150-03J08L 7mm Tunable RF Coils
150-04J08L 7mm Tunable RF Coils
150-06J08L 7mm Tunable RF Coils

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

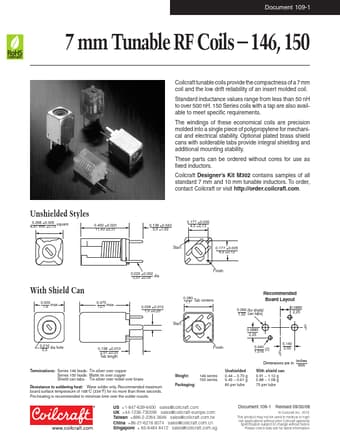

Document 109-1 7 mm Tunable RF Coils – 146, 150 Coilcraft tunable coils provide the compactness of a 7 mm coil and the low drift reliability of an insert molded coil. Standard inductance values range from less than 50 nH to over 500 nH. 150 Series coils with a tap are also available to meet specific requirements. The windings of these economical coils are precision molded into a single piece of polypropylene for mechanical and electrical stability. Optional plated brass shield cans with solderable tabs provide integral shielding and additional mounting stability. These parts can be ordered without cores for use as fixed inductors. Coilcraft Designer’s Kit M302 contains samples of all standard 7 mm and 10 mm tunable inductors. To order, contact Coilcraft or visit http://order.coilcraft.
