1008AF-332XKLD Chip Inductors

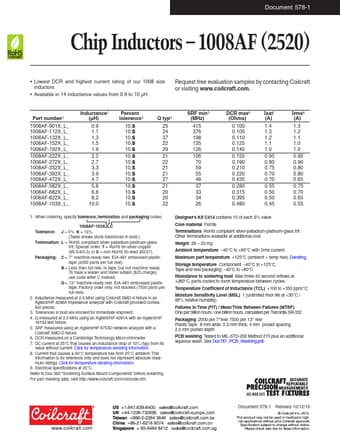

Document 578-1 Chip Inductors 1008AF (2520) Lowest DCR and highest current rating of our 1008 size inductors Available in 14 inductance values from 0.9 to 10 µH. Request free evaluation samples by contacting Coilcraft or visiting www.coilcraft.com. Part number1 Inductance2 Percent (µH) tolerance3 Q typ4 SRF min5 DCR max6 Isat7 Irms8 (MHz) (Ohms) (A) (A) 1008AF-901X_L_ 0.9 10,5 1008AF-112X_L_ 1.1 10,5 1008AF-132X_L_ 1.

1008AF-332XKLD Datasheet (344.05 KB)
