0603USB-251MLB, 0603 USB 3.0 Common Mode Choke

Coilcraft

Description

Document 406-1 USB 3.0 Common Mode Choke 0603 * Designed for high-speed USB 3.0, HDMI, SATA, IEEE1394 and LVDS applications; data rates up t.

📥 Download Datasheet

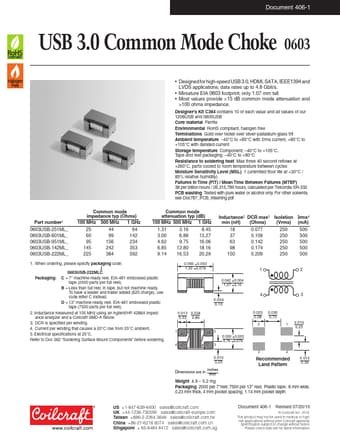

0603USB-251MLB Datasheet Preview — This datasheet PDF includes multiple part numbers: 0603USB-251MLB, 0603. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 0603USB-251MLB, 0603
Manufacturer: Coilcraft
File Size: 153.73 KB
Datasheet: 0603-Coilcraft.pdf
Description: USB 3.0 Common Mode Choke
Note: This datasheet PDF includes multiple part numbers: 0603USB-251MLB, 0603.
Please refer to the document for exact specifications by model.

Applications

* data rates up to 4.8 Gbit/s.
* Miniature EIA 0603 footprint; only 1.07 mm tall
* Most values provide >15 dB common mode attenuation and >100 ohms impedance. Designer’s Kit C384 contains 10 of each value and all values of our 1206USB and 0805USB Core material Ferrite Environmental
