NAS6314 (NAS6303 - NAS6316) A 286 Stainless Steel / Bolt

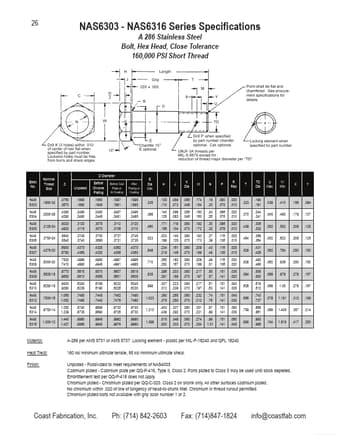

26 NAS6303 - NAS6316 Series Specifications A 286 Stainless Steel Bolt, Hex Head, Close Tolerance 160,000 PSI Short Thread Basic No. NAS 6303 NAS 6304 NAS 6305 NAS 6306 NAS 6307 NAS 6308 NAS 6309 NAS 6310 NAS 6312 NAS 6314 NAS 6316 Nominal Thread Size .1900-32 .2500-28 .3125-24 .3750-24 .4375-20 .5000-20 .5625-18 .6250-18 .7500-16 .8750-14 1.000-12 D Diameter C Unplated .1895 .1890 .2495 .2490 .3120 .3115 .3745 .3740 .4370 .4365 .4995 .4990 .5615 .5610 .6240 .6235 .7490 .7485 .8740 .8735 .999.

NAS6304-CoastFabrication.pdf

NAS6314 Datasheet Preview — This datasheet PDF includes multiple part numbers: NAS6314, NAS6304. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NAS6314, NAS6304

Manufacturer:

Coast Fabrication

File Size:

623.90 KB

Description:

(nas6303 - nas6316) a 286 stainless steel / bolt.

Note:

This datasheet PDF includes multiple part numbers: NAS6314, NAS6304.
Please refer to the document for exact specifications by model.
