CMP5950A - P-Channel Silicon MOSFET

Product Overview

Cmos

Part number	CMP5950A
Manufacturer	Cmos
File Size	1.29 MB
Description	P-Channel Silicon MOSFET
Datasheet	CMP5950A Datasheet

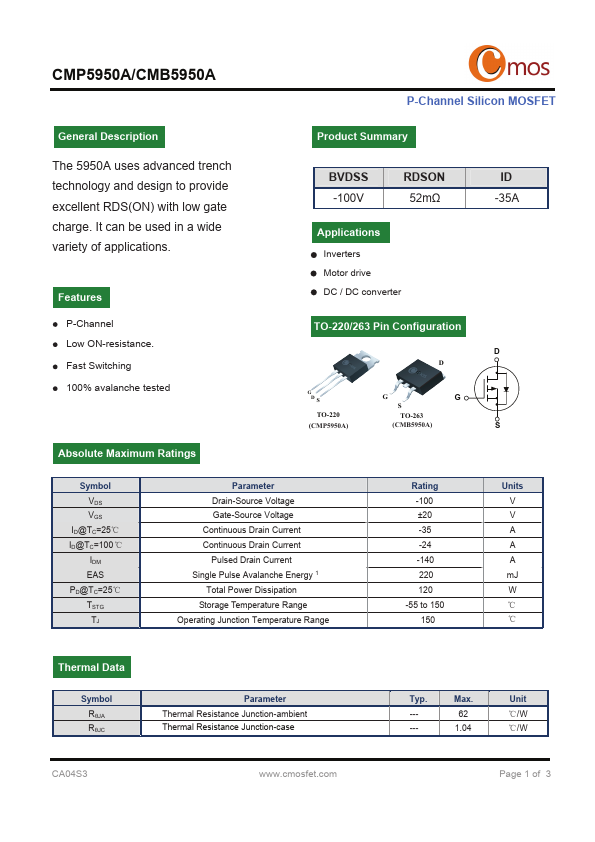

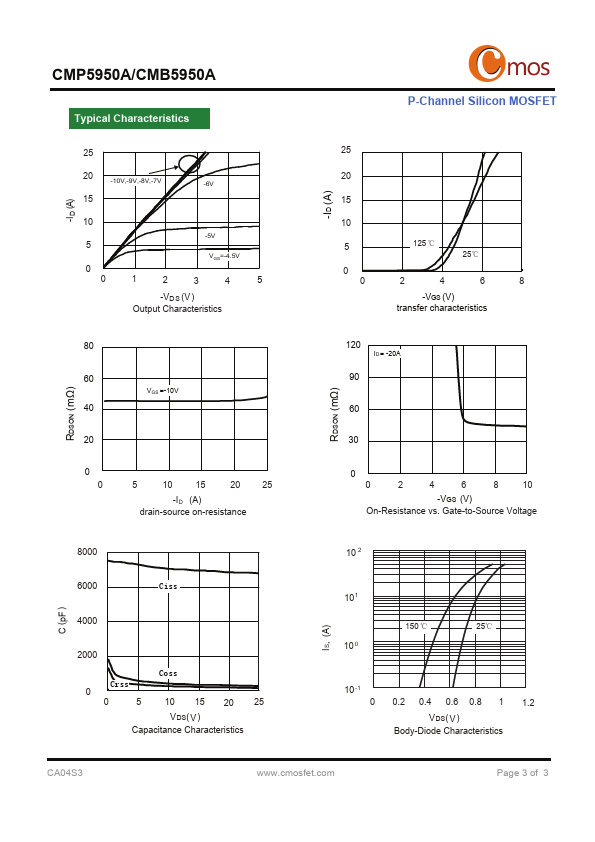

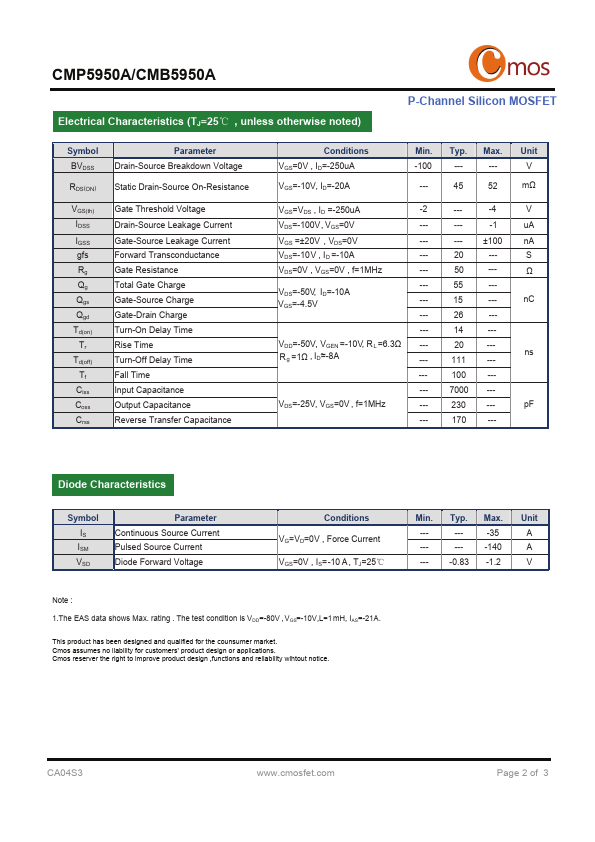

Additional preview pages of the CMP5950A datasheet.

The 5950A uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

P-Channel Low ON-resistance. Fast Switching 100% avalanche tested Absolute Maximum Ratings Product Summary BVDSS -100V RDSON 52mΩ.
