CMB5950A - P-Channel Silicon MOSFET

Product Overview

Cmos

📥 Download Datasheet

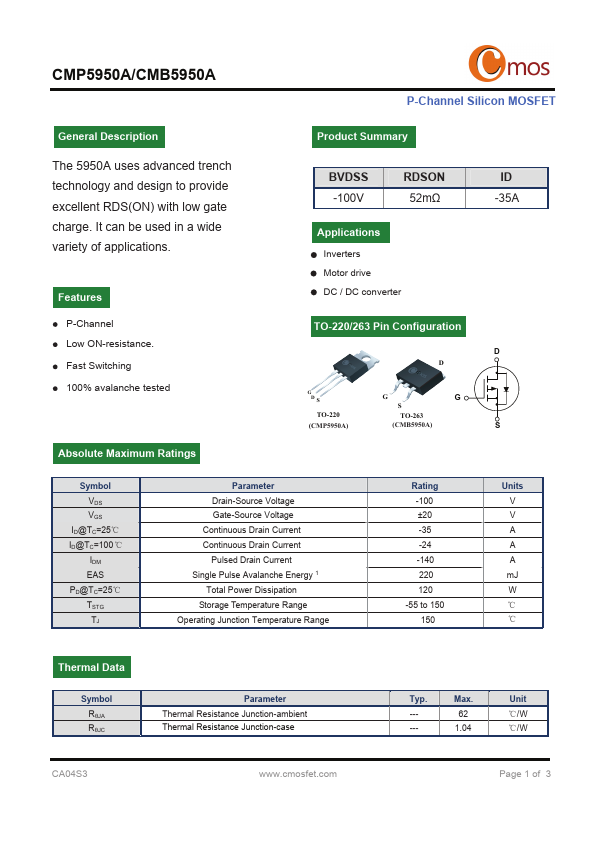

CMB5950A P-Channel Silicon MOSFET by Cmos - Datasheet Preview — Datasheet preview – CMB5950A

Datasheet Details

Part number	CMB5950A
Manufacturer	Cmos
File Size	1.29 MB
Description	P-Channel Silicon MOSFET
Datasheet	CMB5950A Datasheet

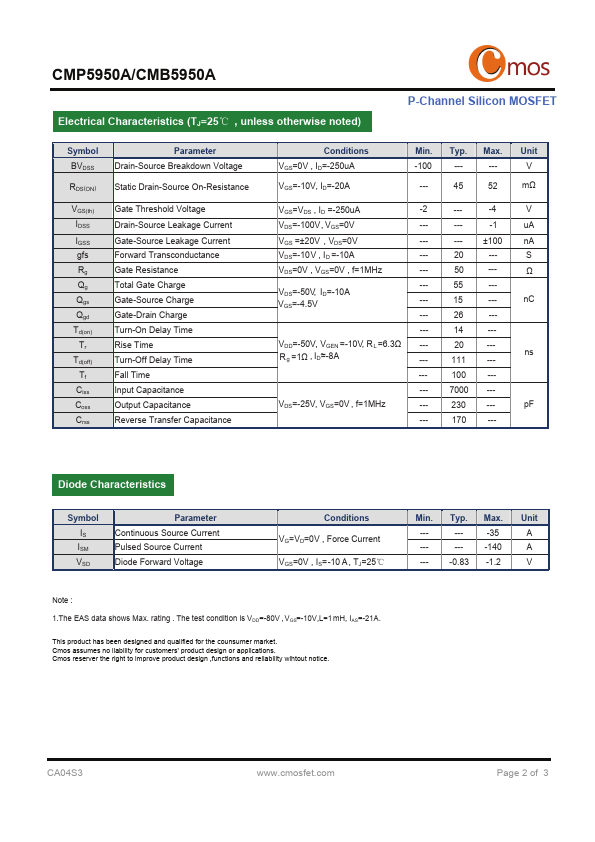

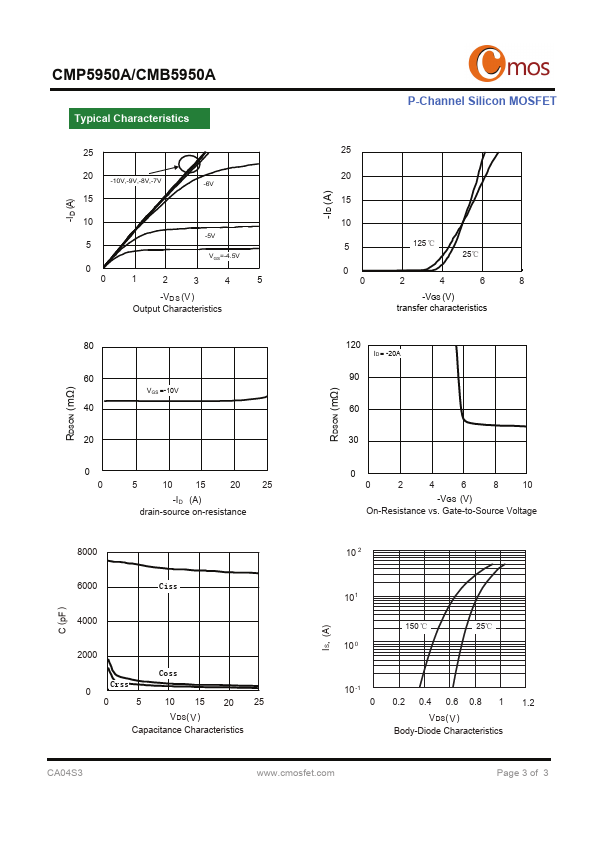

Additional preview pages of the CMB5950A datasheet.

Product details

Description

The 5950A uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

P-Channel Low ON-resistance. Fast Switching 100% avalanche tested Absolute Maximum Ratings Product Summary BVDSS -100V RDSON 52mΩ.
