LBA110L - DUAL POLE OptoMOS Relay

Clare

📥 Download Datasheet

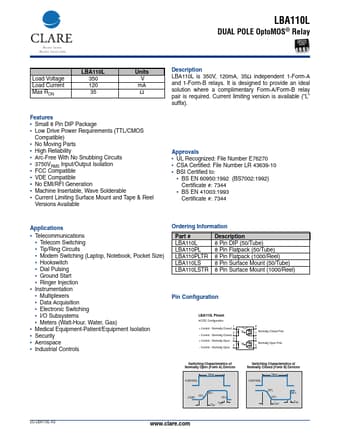

LBA110L Datasheet Preview — Preview of LBA110L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LBA110L
Manufacturer	Clare
File Size	163.61 KB
Description	DUAL POLE OptoMOS Relay
Datasheet	LBA110L_ClareInc..pdf

LBA110L Product details

Description

LBA110L is 350V, 120mA, 35Ω independent 1-Form-A and 1-Form-B relays.

Features

Small 8 Pin DIP Package.
Low Drive Power Requirements (TTL/CMOS Compatible).
No Moving Parts.
High Reliability.
Arc-Free With No Snubbing Circuits.
3750VRMS Input/Output Isolation.
FCC Compatible.
VDE Compatible.
No EMI/RFI Generation.
Machine Insertable, Wave Solderable.
Current Limiting Surface Mount and Tape & Reel Versions Available Approvals.
UL Recognized: File Number E76270.
