CPC1918 Power Relay

Clare

CPC1918 Description

Characteristics Parameter Blocking Voltage Load Current, TA=25°C: With 5°C/W Heat Sink No Heat Sink On-Resistance RθJC Rating 100 13 5.25 0.1 0.3 Un.
Clare and IXYS have combined to bring OptoMOS® technology, reliability and compact size to a new family of high-power Solid State Relays.

CPC1918 Features

* 13Arms Load Current with 5°C/W Heat Sink
* Low 0.1Ω On-Resistance
* 100VP Blocking Voltage
* 2500Vrms Input/Output Isolation
* Low Thermal Resistance (0.3 °C/W)

CPC1918 Applications

* Low Drive Power Requirements
* Arc-Free With No Snubbing Circuits
* No EMI/RFI Generation
* Machine Insertable, Wave Solderable Applications
* Industrial Controls / Motor Control
* Robotics
* Medical Equipment
* Patient/Equipment Isolat

📥 Download Datasheet

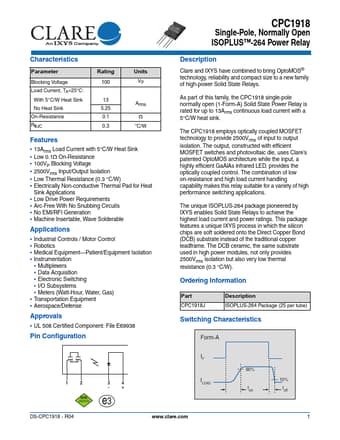

CPC1918 Datasheet Preview — Preview of CPC1918 PDF

Datasheet Details

Part number: CPC1918
Manufacturer: Clare
File Size: 567.60 KB
Datasheet: CPC1918-Clare.pdf
Description: Power Relay
