PBA150S - DUAL POLE OptoMOS Relay

Clare Inc.

📥 Download Datasheet

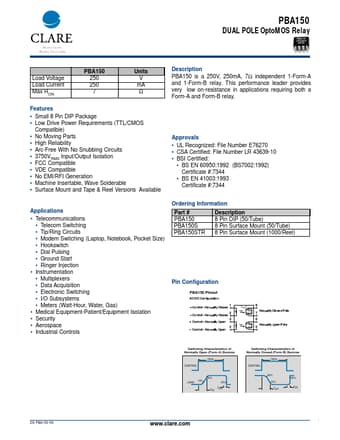

PBA150S Datasheet Preview — Preview of PBA150S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PBA150S
Manufacturer	Clare Inc.
File Size	91.00 KB
Description	DUAL POLE OptoMOS Relay
Datasheet	PBA150S_ClareInc..pdf

PBA150S Product details

Description

PBA150 is a 250V, 250mA, 7Ω independent 1-Form-A and 1-Form-B relay.

Features

Small 8 Pin DIP Package.
Low Drive Power Requirements (TTL/CMOS Compatible).
No Moving Parts.
High Reliability.
Arc-Free With No Snubbing Circuits.
3750VRMS Input/Output Isolation.
FCC Compatible.
VDE Compatible.
No EMI/RFI Generation.
Machine Insertable, Wave Solderable.
Surface Mount and Tape & Reel Versions Available Approvals.
UL Recognized: File Number E76270.
CSA Certified.
