CS42428 - 192-kHz 8-Ch CODEC

Cirrus Logic

📥 Download Datasheet

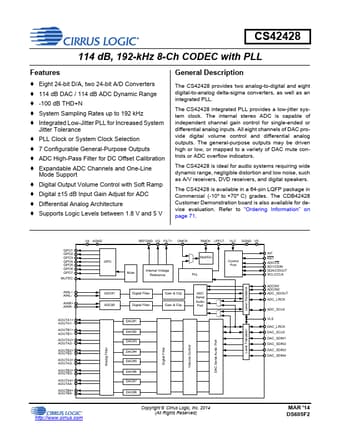

CS42428 Datasheet Preview — Preview of CS42428 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CS42428
Manufacturer	Cirrus Logic
File Size	2.35 MB
Description	192-kHz 8-Ch CODEC
Datasheet	CS42428_CirrusLogic.pdf

CS42428 Product details

Description

The CS42428 codec provides two analog-to-digital and eight digital-to-analog delta-sigma converters, as well as an integrated PLL.

Features

! Eight 24-bit D/A, two 24-bit A/D Converters ! 114 dB DAC / 114 dB ADC Dynamic Range ! -100 dB THD+N ! System Sampling Rates up to 192 kHz ! Integrated Low-Jitter PLL for Increased System General.
