CS3301A - Differential Amplifier

Name: CS3301A
SKU: CS3301A-903440

Cirrus Logic

📥 Download Datasheet

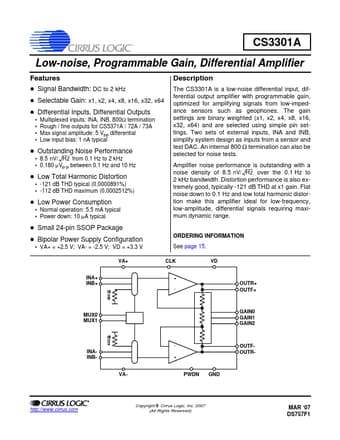

CS3301A Datasheet Preview — Preview of CS3301A PDF

Datasheet Details

Part number	CS3301A
Manufacturer	Cirrus Logic
File Size	224.92 KB
Description	Differential Amplifier
Datasheet	CS3301A-CirrusLogic.pdf

CS3301A Product details

Description

The CS3301A is a low-noise differential input, differential output amplifier with programmable gain, optimized for amplifying signals from low-impedance sensors such as geophones.

Features

& Desription z Signal Bandwidth: DC to 2 kHz z Selectable Gain: x1, x2, x4, x8, x16, x32, x64 z Differential Inputs, Differential Outputs.
Multiplexed inputs: INA, INB, 800Ω termination.
Rough / fine outputs for CS5371A / 72A / 73A.
Max signal amplitude: 5 Vpp differential.
Low input bias: 1 nA typical z Outstanding Noise Performance.
8.5 nV/ Hz from 0.1 Hz to 2 kHz.
0.180 µVp-p between 0.1 Hz and 10 Hz z Low Total Harmonic Distortion.
