CH7023, CH7024 - TV Encoder

Name: CH7023
SKU: CH7023-609708

Chrontel

The CH7023 by Chrontel is a TV Encoder. Below is the official datasheet preview.

📥 Download Datasheet

CH7023 TV Encoder by Chrontel - Datasheet Preview — Official preview page of the **CH7023** TV Encoder datasheet (Chrontel).

Datasheet Details

Part number	CH7023, CH7024
Manufacturer	Chrontel
File Size	473.60 KB
Description	TV Encoder
Datasheet	CH7024_Chrontel.pdf
Note	This datasheet PDF includes multiple part numbers: CH7023, CH7024. Please refer to the document for exact specifications by model.

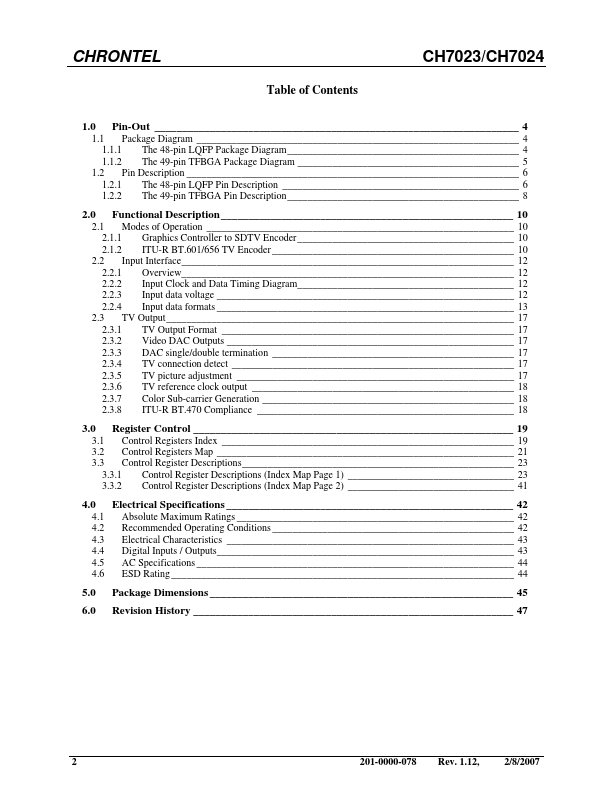

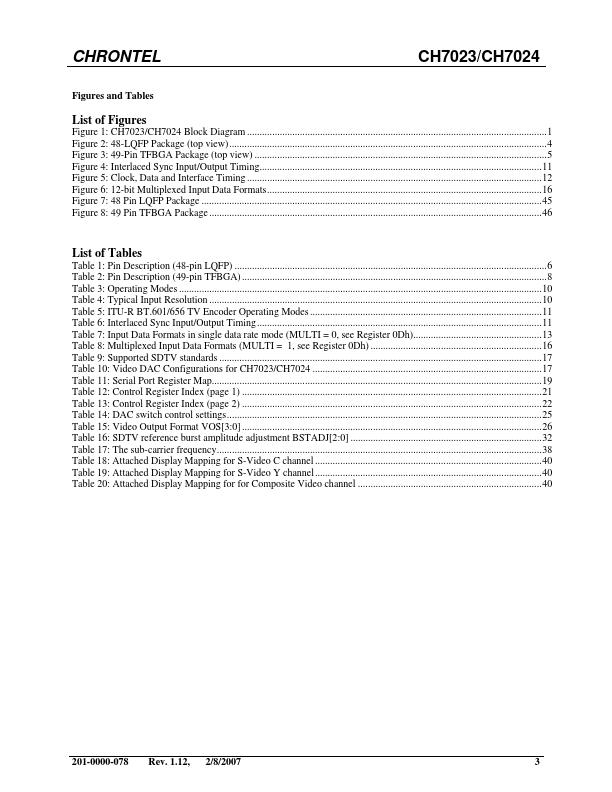

Additional preview pages of the CH7023 datasheet.

CH7023 Product details

Description

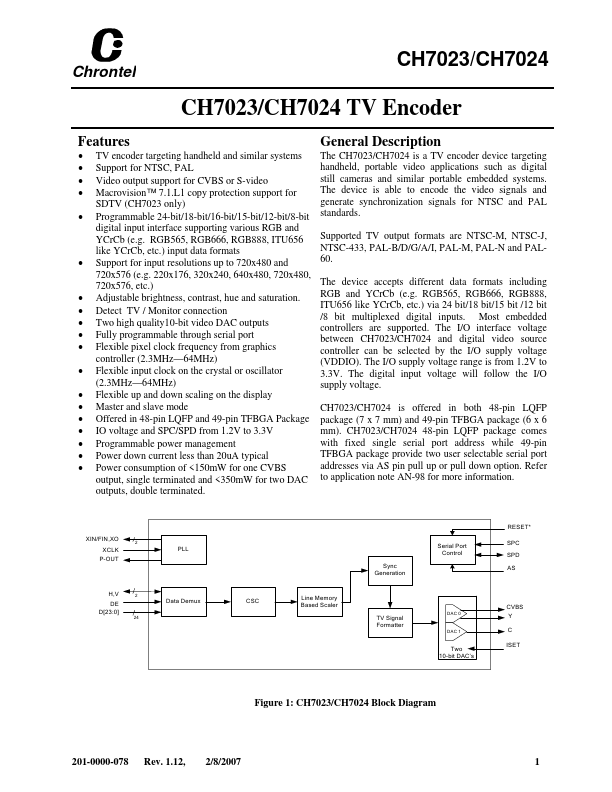

The CH7023/CH7024 is a TV encoder device targeting handheld, portable video applications such as digital still cameras and similar portable embedded systems.

Features

TV encoder targeting handheld and similar systems.
Support for NTSC, PAL.
Video output support for CVBS or S-video.
Macrovision™ 7.1.L1 copy protection support for SDTV (CH7023 only).
Programmable 24-bit/18-bit/16-bit/15-bit/12-bit/8-bit digital input interface supporting various RGB and YCrCb (e. g. RGB565, RGB666, RGB888, ITU656 like YCrCb, etc. ) input data formats.
Support for input resolutions up to 720x480 and 720x576 (e. g. 220x176, 320x.
