CE8808C, CE8808 - Ultra-Small High-Precision Voltage Detector

The CE8808C by Chipower Electronics is a Ultra-Small High-Precision Voltage Detector. Below is the official datasheet preview.

📥 Download Datasheet

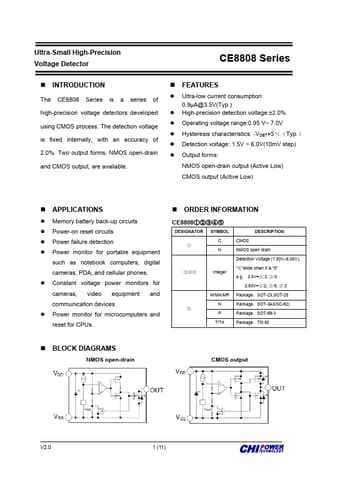

CE8808C Ultra-Small High-Precision Voltage Detector by Chipower Electronics - Datasheet Preview — Official preview page of the **CE8808C** Ultra-Small High-Precision Voltage Detector datasheet (Chipower Electronics).

Datasheet Details

Part number	CE8808C, CE8808
Manufacturer	Chipower Electronics
File Size	394.20 KB
Description	Ultra-Small High-Precision Voltage Detector
Datasheet	CE8808-ChipowerElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: CE8808C, CE8808. Please refer to the document for exact specifications by model.
Additional preview pages of the CE8808C datasheet.

CE8808C Product details

Description

CMOS NMOS open drain Detection Voltage (1.50V~6.00V), “④”elide when it is “0” e.g. BLOCK DIAGRAMS NMOS open-drain CMOS output V2.0 1 (11) Ultra-Small Package High-Precision Voltage Detector CE8808 Series PIN CONFIGURATION PIN NO.1 2 3 CE8808 Series（SOT-23-3） M VDD VOUT VSS - MA VDD VSS VOUT FUNCTION Voltage input pin Voltage detection output pin Ground Gro

Features

S z Ultra-low current consumption: 0.9μA@3.5V(Typ. ) z High-precision detection voltage:±2.0% z Operating voltage range:0.95 V~ 7.0V z Hysteresis characteristics: -VDET×5％（Typ. ） z Detection voltage: 1.5V ~ 6.0V(10mV step) z Output forms: NMOS open-drain output (Active Low) CMOS output (Active Low).
