CA-IS2062VW - Isolated CAN Transceivers

This page provides the datasheet information for the CA-IS2062VW, a member of the CA-IS2062W Isolated CAN Transceivers family.

Description

The CA-IS2062 is galvanically-isolated CAN transceivers with a built-in isolated DC-DC converter, that eliminates the need for a separate isolated power supply in space constrained isolated designs.

Features

  • Meets the ISO 11898-2 physical layer standards.
  • Integrated DC-DC converter for cable-side power.
  • Integrated protection increases robustness.
  • 3.75kVRMS withstand isolation voltage for 60s (galvanic isolation).
  • ±150kV/μs typical CMTI.
  • ±58V fault-tolerant CANH and CANL.
  • ±30V extended common-mode input range (CMR).
  • Transmitter dominant timeout prevents lockup, data rates down to 5.5 kbps.
  • Thermal shutdown.
  • Wide operating temperature rang.

📥 Download Datasheet

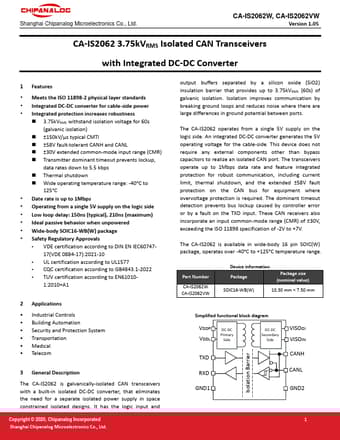

Datasheet preview – CA-IS2062VW
