TR4P151 - General Purpose MCU

ChipSourceTek

📥 Download Datasheet

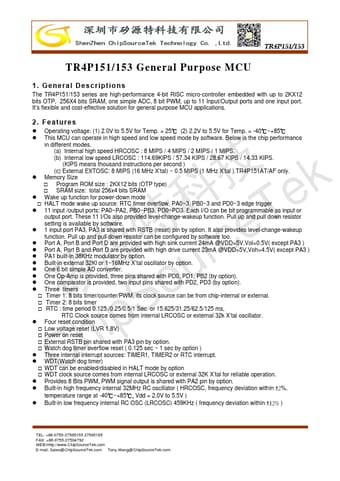

TR4P151 Datasheet Preview — Preview of TR4P151 PDF

Datasheet Details

Part number: TR4P151
Manufacturer: ChipSourceTek
File Size: 2.35 MB
Datasheet: TR4P151-ChipSourceTek.pdf
Description: General Purpose MCU

TR4P151 Product details

Description

The TR4P151/153 series are high-performance 4-bit RISC micro-controller embedded with up to 2KX12 bits OTP, 256X4 bits SRAM, one simple ADC, 8 bit PWM, up to 11 Input/Output ports and one input port.

Features

z Operating voltage: (1) 2.0V to 5.5V for Temp. = 25℃ (2) 2.2V to 5.5V for Temp. = -40℃~+85℃ z This MCU can operate in high speed and low speed mode by software. Below is the chip performance in different modes. (a) Internal high speed HRCOSC : 8 MIPS / 4 MIPS / 2 MIPS / 1 MIPS. (b) Internal low speed LRCOSC : 114.69KIPS / 57.34 KIPS / 28.67 KIPS / 14.33 KIPS. (KIPS means thousand instructions per second ) (c) External EXTOSC: 8 MIPS (16 MHz X’tal) ~ 0.5 MIPS (1 MHz X’tal ). TR4P151AT/AF only. z.
