RY8320 30V 2A 500KHz Synchronous Step-Down Regulator

RY8320 Description

RY8320 30V 2A 500KHz Synchronous Step-Down Regulator RY8320 .
c The RY8320 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs.

RY8320 Features

* Wide 4.5V to 30V Operating Input Range
* 110mΩ/70mΩ Low RDS(ON) Internal Power
* 2A Continuous Output Current MOSFETs
* 500KHz Switching Frequency
* Output Adjustable from 0.6V
* Output Voltage Range from 0.6V to 5V
* No Schottky Diod

RY8320 Applications

* e
* Digital Set-top Box (STB)
* Tablet Personal Computer (Pad) T
* Flat-Panel Television and Monitor
* Wi-Fi Router / AP
* Digital Video Recorder (DVR)
* Portable Media Player (PMP)
* Cable Modem / XDSL
* General Purposes e RY8320 G

📥 Download Datasheet

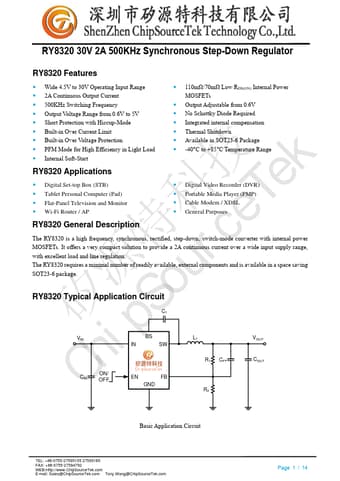

Preview of RY8320 PDF
